plotnine.geom_hline

geom_hline(mapping=None, data=None, **kwargs)

Horizontal line

{usage}

Examples

from plotnine import ggplot, aes, geom_point, geom_hline, facet_grid, labs
from plotnine.data import mpg

Horizontal line

geom_hline() draws a vertical line, and is useful as a guide.

mpg.head()

	manufacturer	model	displ	year	cyl	trans	drv	cty	hwy	fl	class
0	audi	a4	1.8	1999	4	auto(l5)	f	18	29	p	compact
1	audi	a4	1.8	1999	4	manual(m5)	f	21	29	p	compact
2	audi	a4	2.0	2008	4	manual(m6)	f	20	31	p	compact
3	audi	a4	2.0	2008	4	auto(av)	f	21	30	p	compact
4	audi	a4	2.8	1999	6	auto(l5)	f	16	26	p	compact

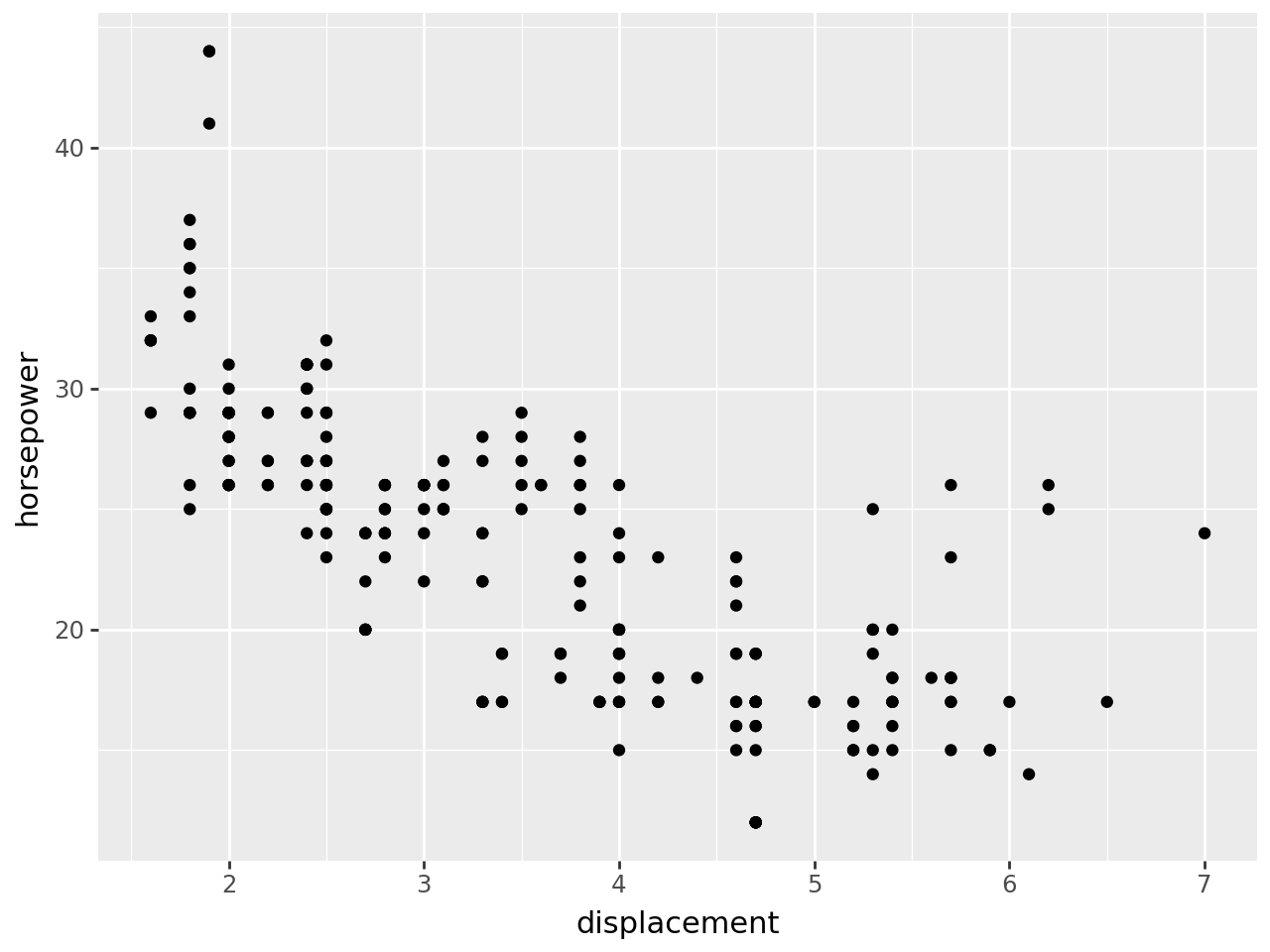

It’s useful to use geom_hline() with some data, so we start with a basic scatter plot:

(
    ggplot(mpg, aes(x="displ", y="hwy"))
    + geom_point()
    + labs(x="displacement", y="horsepower")
)

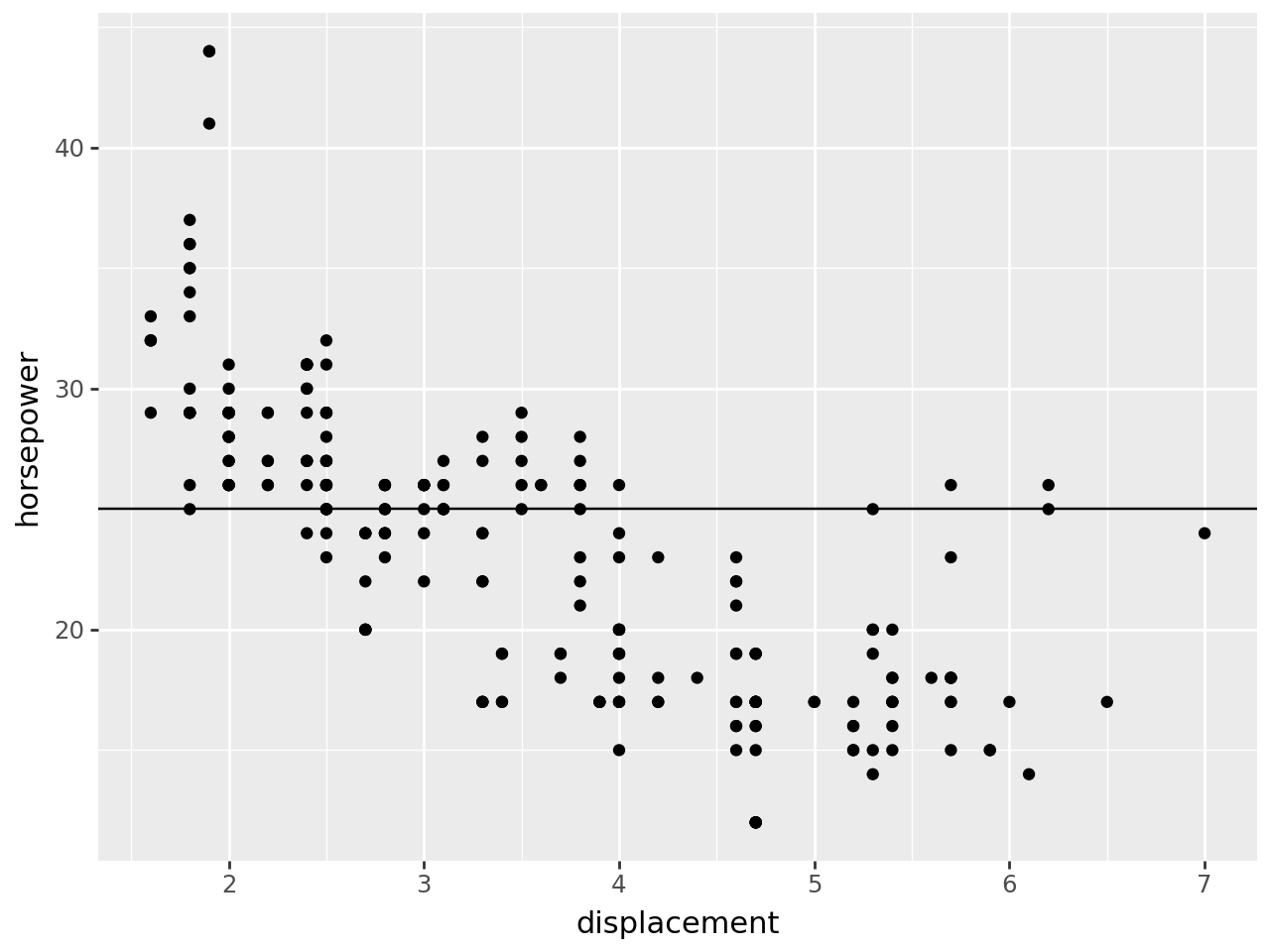

Now add a horizontal line to the scatter plot:

(
    ggplot(mpg, aes(x="displ", y="hwy"))
    + geom_point()
    + geom_hline(yintercept=25)  # add one horizonal line
    + labs(x="displacement", y="horsepower")
)

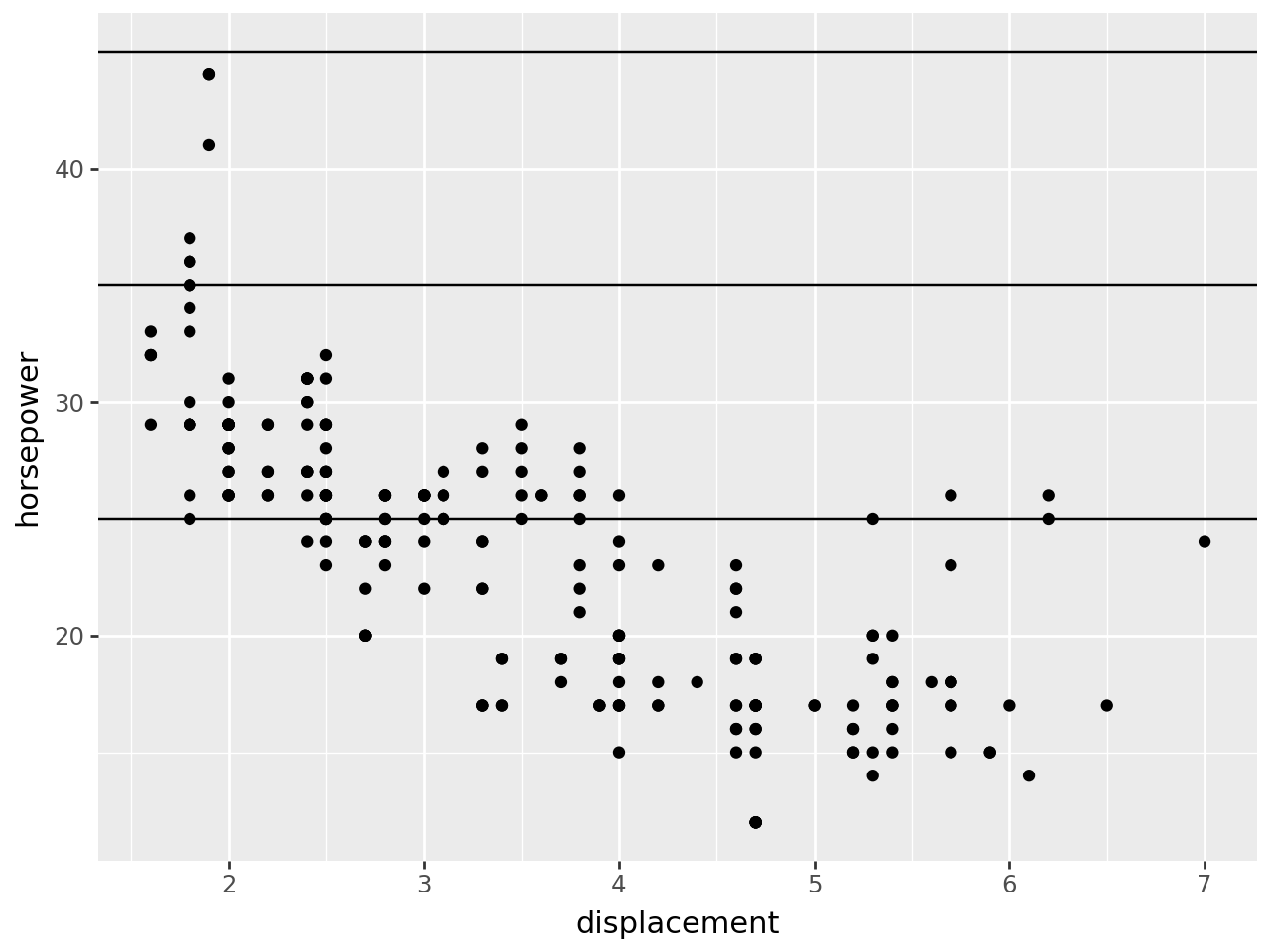

You can add many horizontal lines:

(
    ggplot(mpg, aes(x="displ", y="hwy"))
    + geom_point()
    + geom_hline(yintercept=[25, 35, 45])  # add many horizontal lines using a list
    + labs(x="displacement", y="horsepower")
)

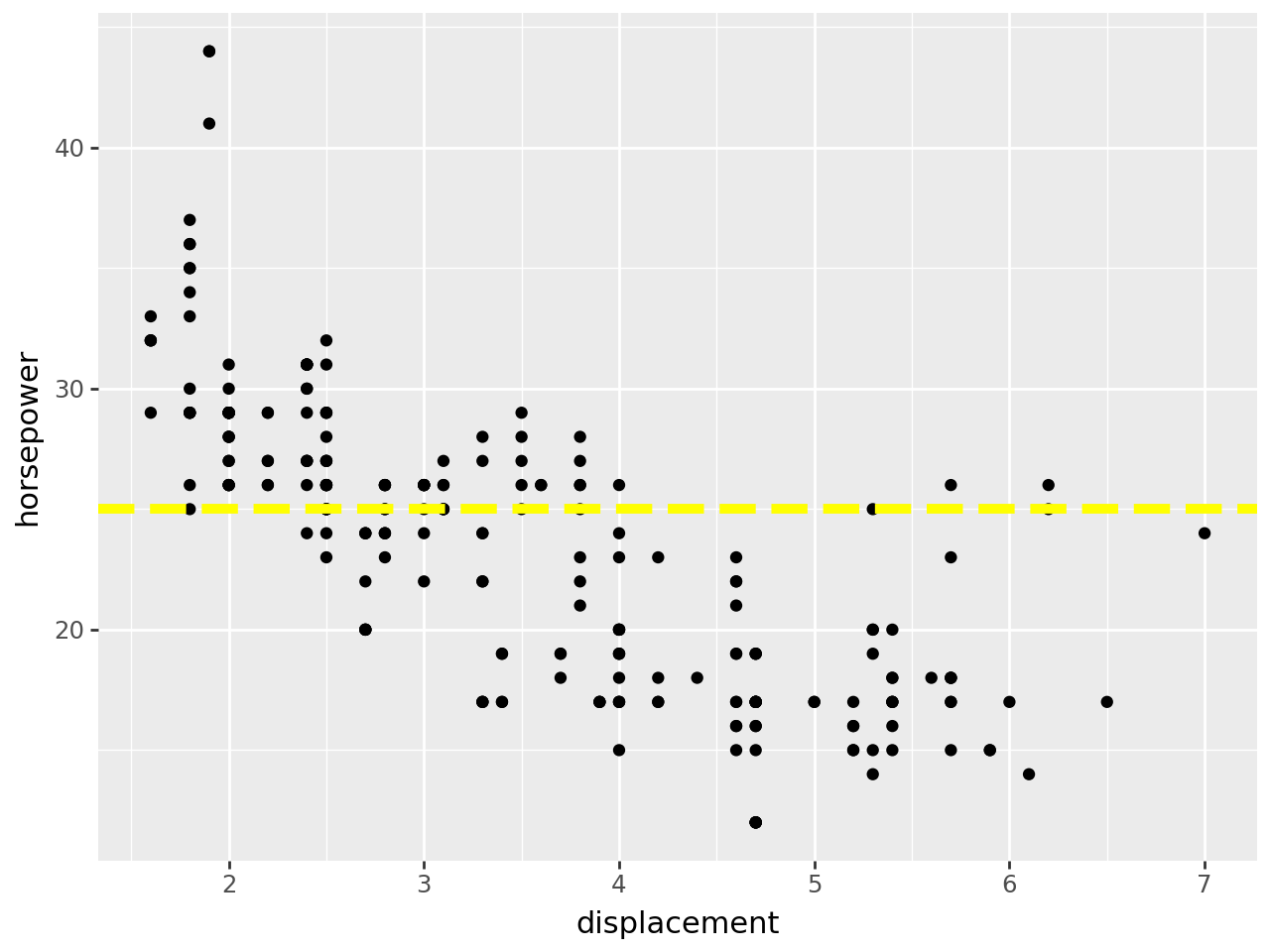

You can change the look of the line:

(
    ggplot(mpg, aes(x="displ", y="hwy"))
    + geom_point()
    + geom_hline(
        yintercept=25,
        color="yellow",  # set line colour
        size=2,  # set line thickness
        linetype="dashed",  # set line type
    )
    + labs(x="displacement", y="horsepower")
)

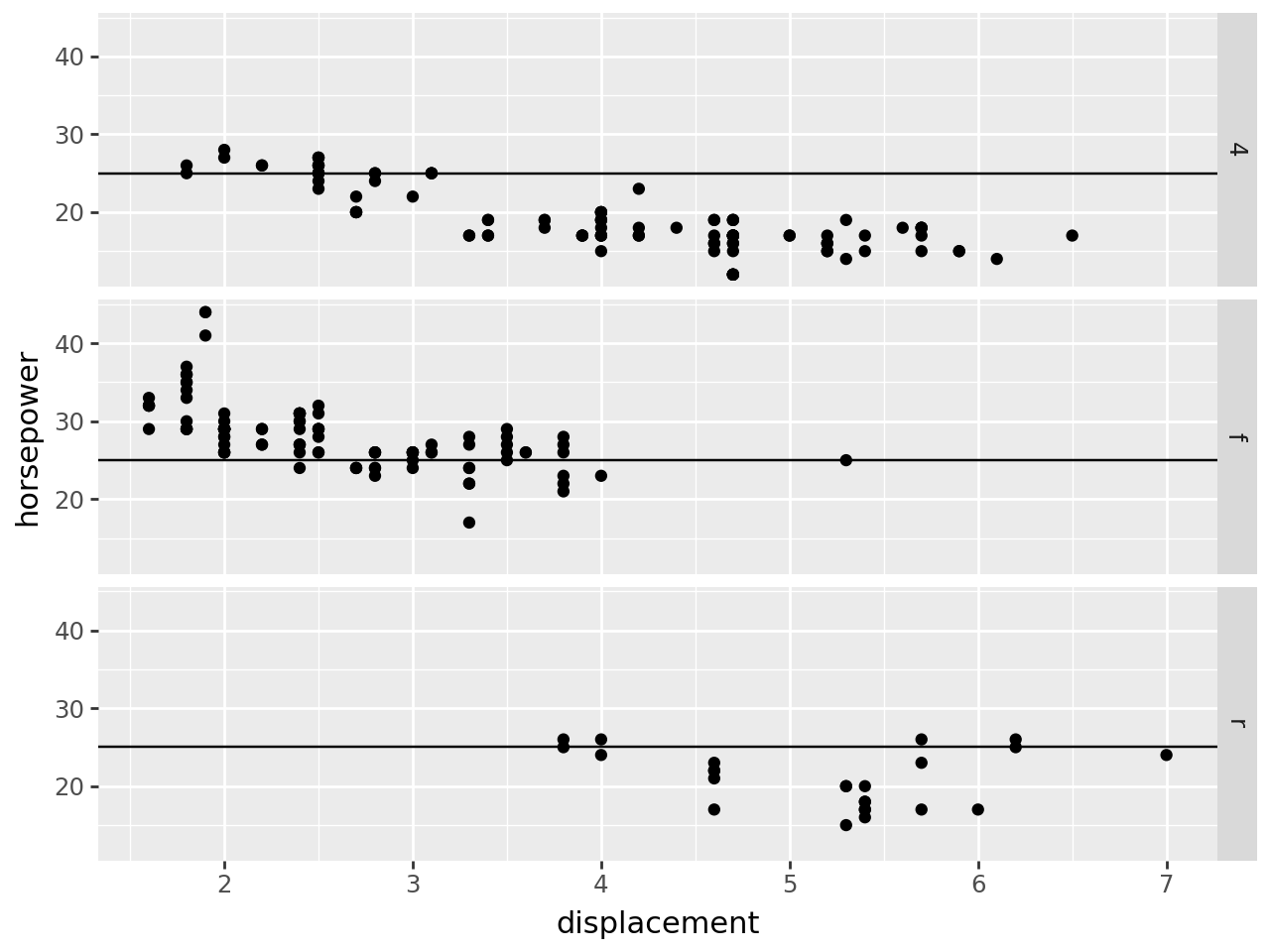

And you can add horizontal lines to a facet plot:

(
    ggplot(mpg, aes(x="displ", y="hwy"))
    + geom_point()
    + geom_hline(yintercept=25)  # add a vertical line...
    + facet_grid("drv")  # ... to a facet plot
    + labs(x="displacement", y="horsepower")
)
