plotnine.composition.plot_spacer

plot_spacer(fill=None, alpha=None)

Blank area as wide or as tall as a plot

Parameters

fill : str | tuple[float, float, float] | tuple[float, float, float, float] | None = None

Background color. The default is a transparent area, but it can be changed through this parameter.

The color can also be modified by adding a theme and setting the plot_background.

alpha : float | None = None

Opacity of the background fill, between 0 (transparent) and 1 (opaque). The default leaves the area transparent.

The opacity can also be modified by adding a theme and setting the plot_background.

See Also

Beside

To arrange plots side by side

Stack

To arrange plots vertically

Compose

For more on composing plots

Examples

from plotnine import ggplot, aes, geom_point, geom_boxplot, theme, element_rect
from plotnine.composition import plot_spacer
from plotnine.data import mtcars

p1 = ggplot(mtcars, aes("wt", "mpg")) + geom_point()
p2 = ggplot(mtcars, aes("wt", "disp")) + geom_point()
p3 = ggplot(mtcars, aes("factor(cyl)", "wt")) + geom_boxplot()

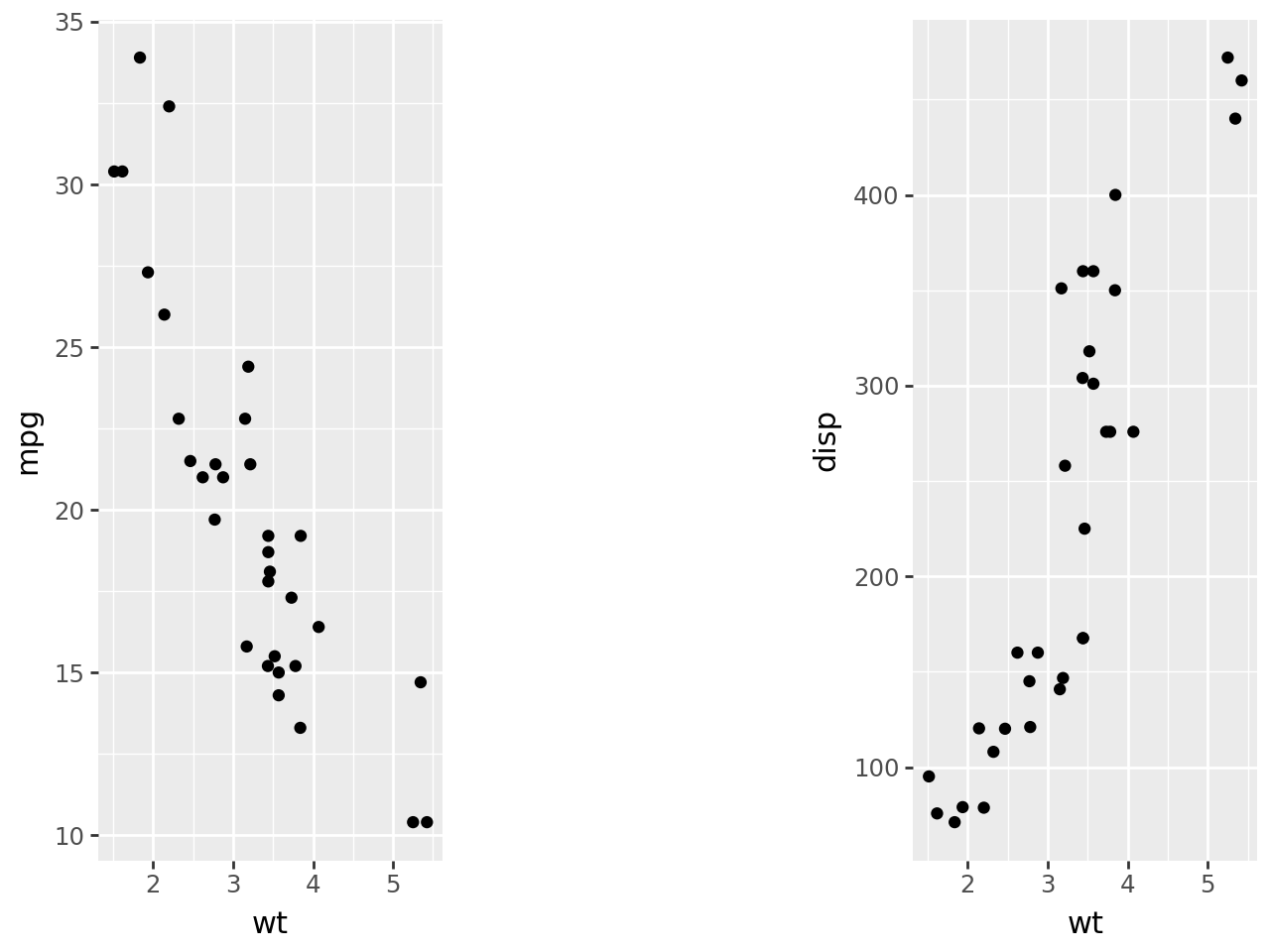

p1 | plot_spacer() | p2

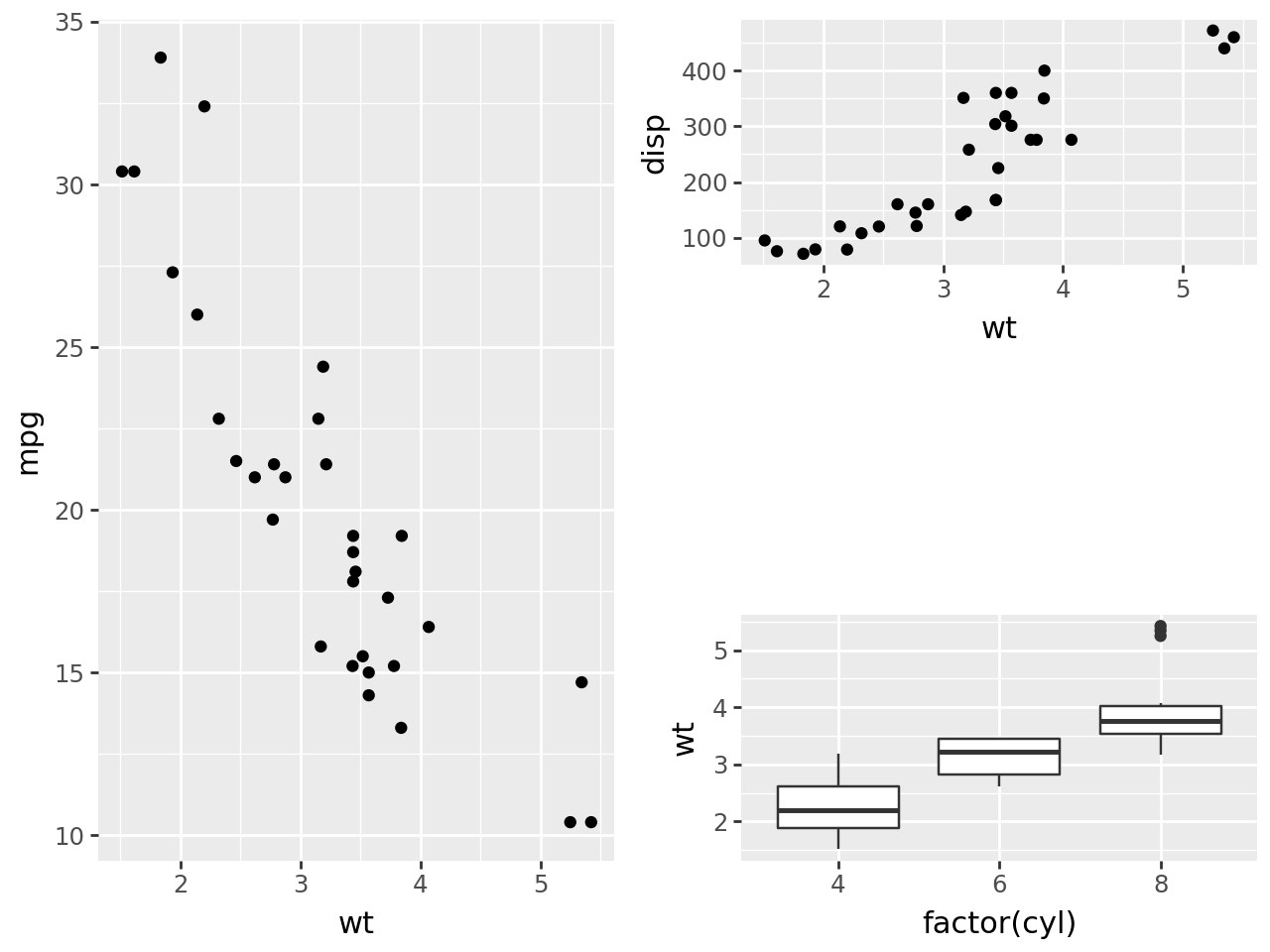

p1 | (p2 / plot_spacer() / p3)

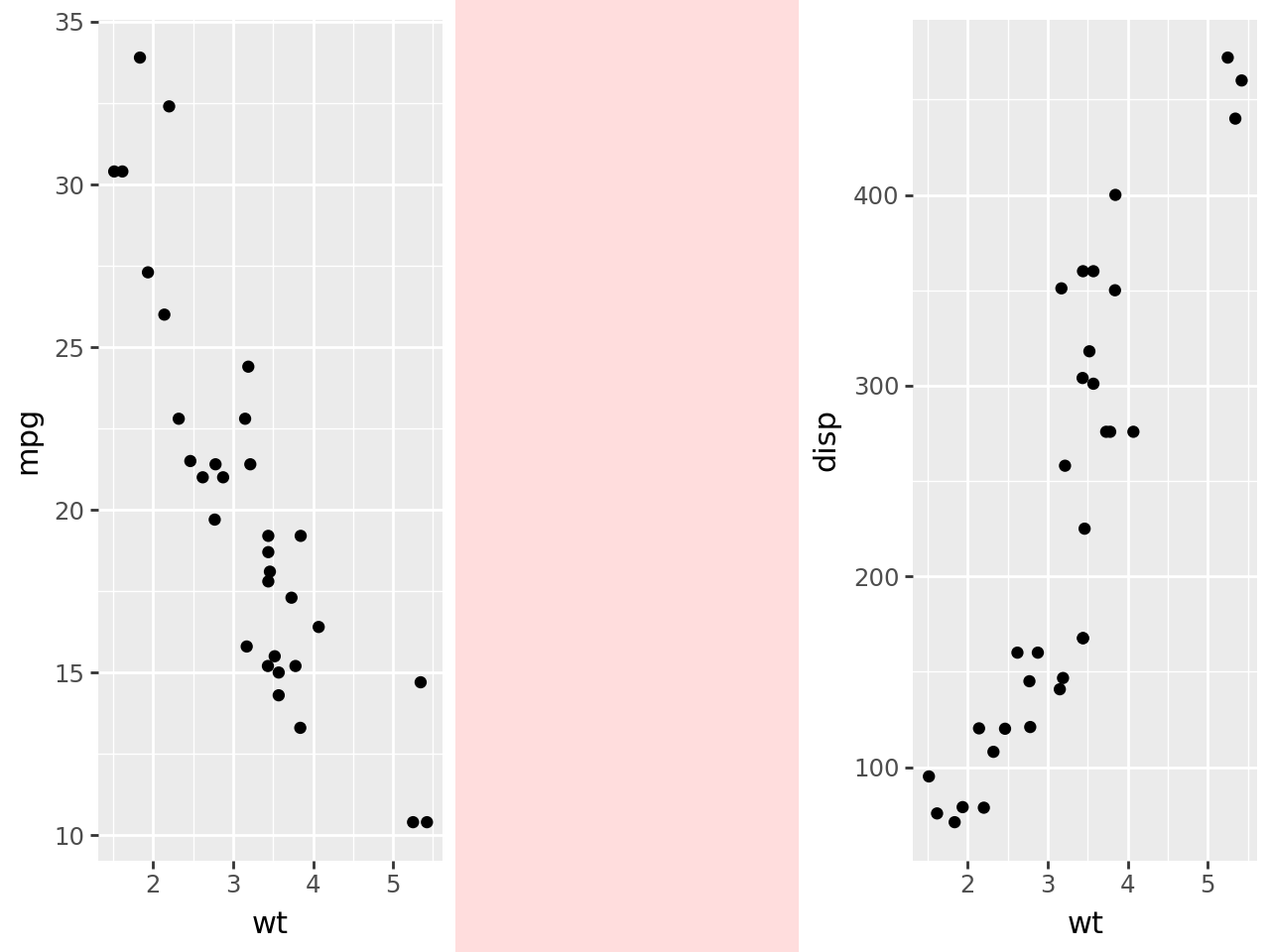

Change the color of the space.

p1 | plot_spacer("#FF000022") | p2

Which is the same as

p1 | (plot_spacer() + theme(plot_background=element_rect(fill="#FF000022"))) | p2

Source: plot_spacer.ipynb
