from plotnine import (
aes,
annotate,
coord_equal,
element_rect,
element_text,
facet_wrap,
geom_point,
geom_segment,
geom_text,
geom_tile,
ggplot,
lims,
scale_shape_identity,
theme,
theme_void,
)
import polars as pl
import numpy as npScatter Plot Shapes
In [1]:
List the shapes and prepare dataframe with what is required to display them.
In [2]:
filled_shapes = (
"o", # circle
"^", # triangle up
"s", # square
"D", # Diamond
"v", # triangle down
"*", # star
"p", # pentagon
"8", # octagon
"<", # triangle left
"h", # hexagon1
">", # triangle right
"H", # hexagon1
"d", # thin diamond
)
unfilled_shapes = (
"+", # plus
"x", # x
".", # point
"1", # tri_down
"2", # tri_up
"3", # tri_left
"4", # tri_right
",", # pixel
"_", # hline
"|", # vline
0, # tickleft
1, # tickright
2, # tickup
3, # tickdown
4, # caretleft
5, # caretright
6, # caretup
7, # caretdown
)
n1 = len(filled_shapes)
n2 = len(unfilled_shapes)
ncols = 10
shapes = filled_shapes + unfilled_shapes
df = pl.DataFrame({
"x": np.hstack([np.arange(n1) % ncols, np.arange(n2) % ncols]),
"y": 4 - 1.5 * np.hstack([np.arange(n1) // ncols, np.arange(n2) // ncols]),
"shape": pl.Series(shapes, dtype=object),
"shape_kind": np.repeat(["Filled Shapes", "Unfilled Shapes"], (n1, n2))
})
df
shape: (31, 4)
| x | y | shape | shape_kind |
|---|---|---|---|
| i64 | f64 | object | str |
| 0 | 4.0 | o | "Filled Shapes" |
| 1 | 4.0 | ^ | "Filled Shapes" |
| 2 | 4.0 | s | "Filled Shapes" |
| 3 | 4.0 | D | "Filled Shapes" |
| 4 | 4.0 | v | "Filled Shapes" |
| … | … | … | … |
| 3 | 2.5 | 3 | "Unfilled Shapes" |
| 4 | 2.5 | 4 | "Unfilled Shapes" |
| 5 | 2.5 | 5 | "Unfilled Shapes" |
| 6 | 2.5 | 6 | "Unfilled Shapes" |
| 7 | 2.5 | 7 | "Unfilled Shapes" |
In [3]:
# Gallery, points
def double_quote_strings(series):
return [
'"{}"'.format(s) if isinstance(s, str) else "{}".format(s)
for s in series
]
(

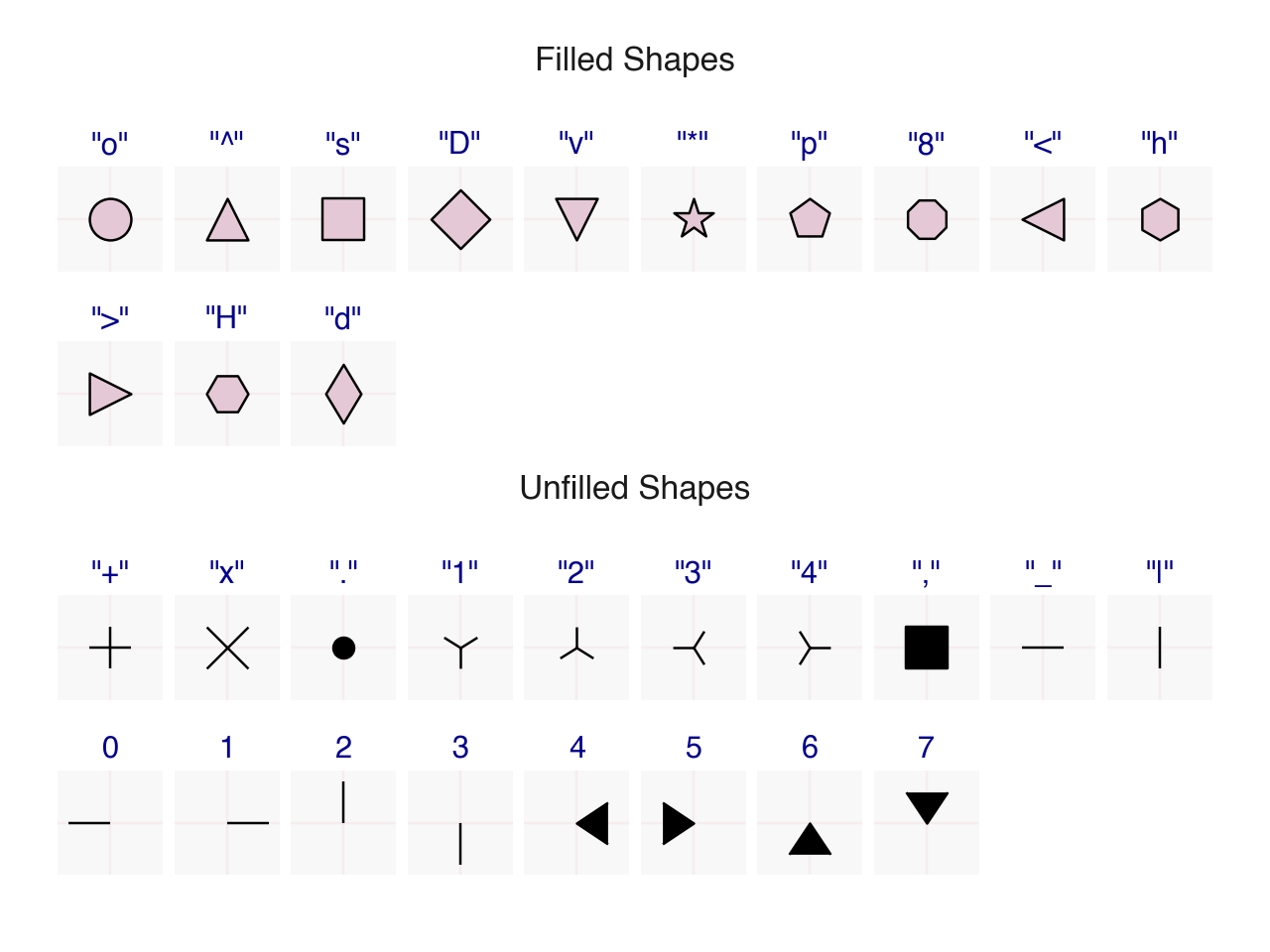

ggplot(df, aes("x", "y"))
# Background
+ geom_tile(aes(width=0.9, height=0.9), fill="#F8F8F8")
# Cross-grid to help see the centering of the shapes
+ geom_segment(aes(x="x-0.45", xend="x+0.45", yend="y"), color="Crimson", alpha=0.05)
+ geom_segment(aes(xend="x", y="y-0.45", yend="y+0.45"), color="Crimson", alpha=0.05)
# The shape
+ geom_point(aes(shape="shape"), fill="#E5C8D6", size=8)
# Specification value for the shape
+ geom_text(
aes(y="y+.5", label="double_quote_strings(shape)"),
color="darkblue",
va="bottom",
)
# Separate the shapes by their kind
+ facet_wrap("shape_kind", ncol=1)
# Make things pretty
+ lims(y=(2, 5))
+ scale_shape_identity()
+ coord_equal()
+ theme_void()
+ theme(
plot_background=element_rect(fill="white"),
strip_text=element_text(size=12)
)
)--------------------------------------------------------------------------- TypeError Traceback (most recent call last) File ~/.uvenv/plotnine/lib/python3.13/site-packages/IPython/core/formatters.py:984, in IPythonDisplayFormatter.__call__(self, obj) 982 method = get_real_method(obj, self.print_method) 983 if method is not None: --> 984 method() 985 return True File ~/scm/python/plotnine/plotnine/ggplot.py:149, in ggplot._ipython_display_(self) 142 def _ipython_display_(self): 143 """ 144 Display plot in the output of the cell 145 146 This method will always be called when a ggplot object is the 147 last in the cell. 148 """ --> 149 self._display() File ~/scm/python/plotnine/plotnine/ggplot.py:190, in ggplot._display(self) 187 self.theme = self.theme.to_retina() 189 buf = BytesIO() --> 190 self.save(buf, "png" if format == "retina" else format, verbose=False) 191 figure_size_px = self.theme._figure_size_px 192 display_func = get_display_function(format, figure_size_px) File ~/scm/python/plotnine/plotnine/ggplot.py:702, in ggplot.save(self, filename, format, path, width, height, units, dpi, limitsize, verbose, **kwargs) 653 def save( 654 self, 655 filename: Optional[str | Path | BytesIO] = None, (...) 664 **kwargs: Any, 665 ): 666 """ 667 Save a ggplot object as an image file 668 (...) 700 Additional arguments to pass to matplotlib `savefig()`. 701 """ --> 702 sv = self.save_helper( 703 filename=filename, 704 format=format, 705 path=path, 706 width=width, 707 height=height, 708 units=units, 709 dpi=dpi, 710 limitsize=limitsize, 711 verbose=verbose, 712 **kwargs, 713 ) 715 with plot_context(self).rc_context: 716 sv.figure.savefig(**sv.kwargs) File ~/scm/python/plotnine/plotnine/ggplot.py:650, in ggplot.save_helper(self, filename, format, path, width, height, units, dpi, limitsize, verbose, **kwargs) 647 if dpi is not None: 648 self.theme = self.theme + theme(dpi=dpi) --> 650 figure = self.draw(show=False) 651 return mpl_save_view(figure, fig_kwargs) File ~/scm/python/plotnine/plotnine/ggplot.py:322, in ggplot.draw(self, show) 319 self._create_figure() 320 figure = self.figure --> 322 self._build() 324 # setup 325 self.axs = self.facet.setup(self) File ~/scm/python/plotnine/plotnine/ggplot.py:419, in ggplot._build(self) 417 npscales = scales.non_position_scales() 418 if len(npscales): --> 419 layers.train(npscales) 420 layers.map(npscales) 422 # Train coordinate system File ~/scm/python/plotnine/plotnine/layer.py:492, in Layers.train(self, scales) 490 def train(self, scales: Scales): 491 for l in self: --> 492 scales.train_df(l.data) File ~/scm/python/plotnine/plotnine/scales/scales.py:203, in Scales.train_df(self, data, drop) 201 # Each scale trains the columns it understands 202 for sc in self: --> 203 sc.train_df(data) File ~/scm/python/plotnine/plotnine/scales/scale.py:284, in scale.train_df(self, df) 282 aesthetics = sorted(set(self.aesthetics) & set(df.columns)) 283 for ae in aesthetics: --> 284 self.train(df[ae]) File ~/scm/python/plotnine/plotnine/scales/scale_identity.py:36, in MapTrainMixin.train(self, x, drop) 33 if self.guide is None: # pyright: ignore 34 return ---> 36 return super().train(x) File ~/scm/python/plotnine/plotnine/scales/scale_discrete.py:107, in scale_discrete.train(self, x, drop) 104 return 106 na_rm = not self.na_translate --> 107 self._range.train(x, drop, na_rm=na_rm) File ~/scm/python/plotnine/plotnine/scales/range.py:67, in RangeDiscrete.train(self, x, drop, na_rm) 63 """ 64 Train discrete range 65 """ 66 rng = None if self.is_empty() else self.range ---> 67 self.range = scale_discrete.train(x, rng, drop, na_rm=na_rm) File ~/.uvenv/plotnine/lib/python3.13/site-packages/mizani/scale.py:269, in scale_discrete.train(cls, new_data, old, drop, na_rm) 267 limits = [c for c in ordered_cats if c in all_set] 268 else: --> 269 new = np.unique(new_data) 270 new.sort() 272 limits = old + [i for i in new if (i not in old_set)] File ~/.uvenv/plotnine/lib/python3.13/site-packages/numpy/lib/_arraysetops_impl.py:286, in unique(ar, return_index, return_inverse, return_counts, axis, equal_nan) 284 ar = np.asanyarray(ar) 285 if axis is None: --> 286 ret = _unique1d(ar, return_index, return_inverse, return_counts, 287 equal_nan=equal_nan, inverse_shape=ar.shape, axis=None) 288 return _unpack_tuple(ret) 290 # axis was specified and not None File ~/.uvenv/plotnine/lib/python3.13/site-packages/numpy/lib/_arraysetops_impl.py:353, in _unique1d(ar, return_index, return_inverse, return_counts, equal_nan, inverse_shape, axis) 351 aux = ar[perm] 352 else: --> 353 ar.sort() 354 aux = ar 355 mask = np.empty(aux.shape, dtype=np.bool) TypeError: '<' not supported between instances of 'int' and 'str'
<plotnine.ggplot.ggplot at 0x10acd1220>
