Mondrian

import polars as pl
import numpy as np
from plotnine import ggplot, aes, geom_rect, theme_minimal, scale_fill_manual, theme, element_blank
from typing import List, Tuple
from enum import Enum

class MondrianColour(Enum):
    BLACK = "#000000"
    YELLOW = "#FDDE06"
    BLUE = "#0300AD"
    RED = "#E70503"
    WHITE = "#ffffff"

class Node:
    def __init__(self, depth: int, x_range: Tuple[float, float], y_range: Tuple[float, float]):
        self.depth = depth
        self.x_range = x_range
        self.y_range = y_range
        self.left = None
        self.right = None
        self.split_value = None
        self.is_vertical = np.random.choice([True, False])

def generate_tree(node: Node, max_depth: int, min_size: float, force_split: bool = False) -> None:
    width = node.x_range[1] - node.x_range[0]
    height = node.y_range[1] - node.y_range[0]

    if not force_split:
        if node.depth >= max_depth or (np.random.random() < 0.1 and node.depth > 1):
            return

        if width < min_size and height < min_size:
            return

    if node.is_vertical and width >= min_size:
        node.split_value = np.random.uniform(node.x_range[0] + min_size, node.x_range[1] - min_size)
        node.left = Node(node.depth + 1, (node.x_range[0], node.split_value), node.y_range)
        node.right = Node(node.depth + 1, (node.split_value, node.x_range[1]), node.y_range)
    elif not node.is_vertical and height >= min_size:
        node.split_value = np.random.uniform(node.y_range[0] + min_size, node.y_range[1] - min_size)
        node.left = Node(node.depth + 1, node.x_range, (node.y_range[0], node.split_value))
        node.right = Node(node.depth + 1, node.x_range, (node.split_value, node.y_range[1]))
    else:
        return

    generate_tree(node.left, max_depth, min_size)
    generate_tree(node.right, max_depth, min_size)

def initial_splits(root: Node, min_size: float) -> None:
    # Vertical split
    root.is_vertical = True
    root.split_value = np.random.uniform(root.x_range[0] + min_size, root.x_range[1] - min_size)
    root.left = Node(1, (root.x_range[0], root.split_value), root.y_range)
    root.right = Node(1, (root.split_value, root.x_range[1]), root.y_range)

    # Horizontal splits
    root.left.is_vertical = False
    root.left.split_value = np.random.uniform(root.left.y_range[0] + min_size, root.left.y_range[1] - min_size)
    root.left.left = Node(2, root.left.x_range, (root.left.y_range[0], root.left.split_value))
    root.left.right = Node(2, root.left.x_range, (root.left.split_value, root.left.y_range[1]))

    root.right.is_vertical = False
    root.right.split_value = np.random.uniform(root.right.y_range[0] + min_size, root.right.y_range[1] - min_size)
    root.right.left = Node(2, root.right.x_range, (root.right.y_range[0], root.right.split_value))
    root.right.right = Node(2, root.right.x_range, (root.right.split_value, root.right.y_range[1]))

def tree_to_rectangles(node: Node, rectangles: List[dict]) -> None:
    if node.left is None and node.right is None:
        rectangles.append({
            'xmin': node.x_range[0],
            'xmax': node.x_range[1],
            'ymin': node.y_range[0],
            'ymax': node.y_range[1],
            'depth': node.depth
        })
    else:
        tree_to_rectangles(node.left, rectangles)
        tree_to_rectangles(node.right, rectangles)

def draw(seed: int):
    np.random.seed(seed)

    root = Node(0, (0, 1), (0, 1))
    min_size = 0.05
    max_depth = 12

    # Perform initial splits
    initial_splits(root, min_size)

    # Continue generating the tree
    generate_tree(root.left.left, max_depth, min_size)
    generate_tree(root.left.right, max_depth, min_size)
    generate_tree(root.right.left, max_depth, min_size)
    generate_tree(root.right.right, max_depth, min_size)

    rectangles = []
    tree_to_rectangles(root, rectangles)

    colours = pl.Series(name="colour",values=np.random.choice([colour.value for colour in MondrianColour], size= len(rectangles)))

    df = pl.DataFrame(rectangles).with_columns(colours)

    plot = (ggplot(df, aes(xmin='xmin', xmax='xmax', ymin='ymin', ymax='ymax', fill='colour'))
            + geom_rect(color='black', size=2)
            + scale_fill_manual(values=[colour.value for colour in MondrianColour])
            + theme_minimal()
            + theme(legend_position = "none",
                    aspect_ratio=1,
                    axis_text=element_blank(),
                    axis_ticks=element_blank(),
                    panel_grid=element_blank(),
                    figure_size=(10,10))
    )

    return plot

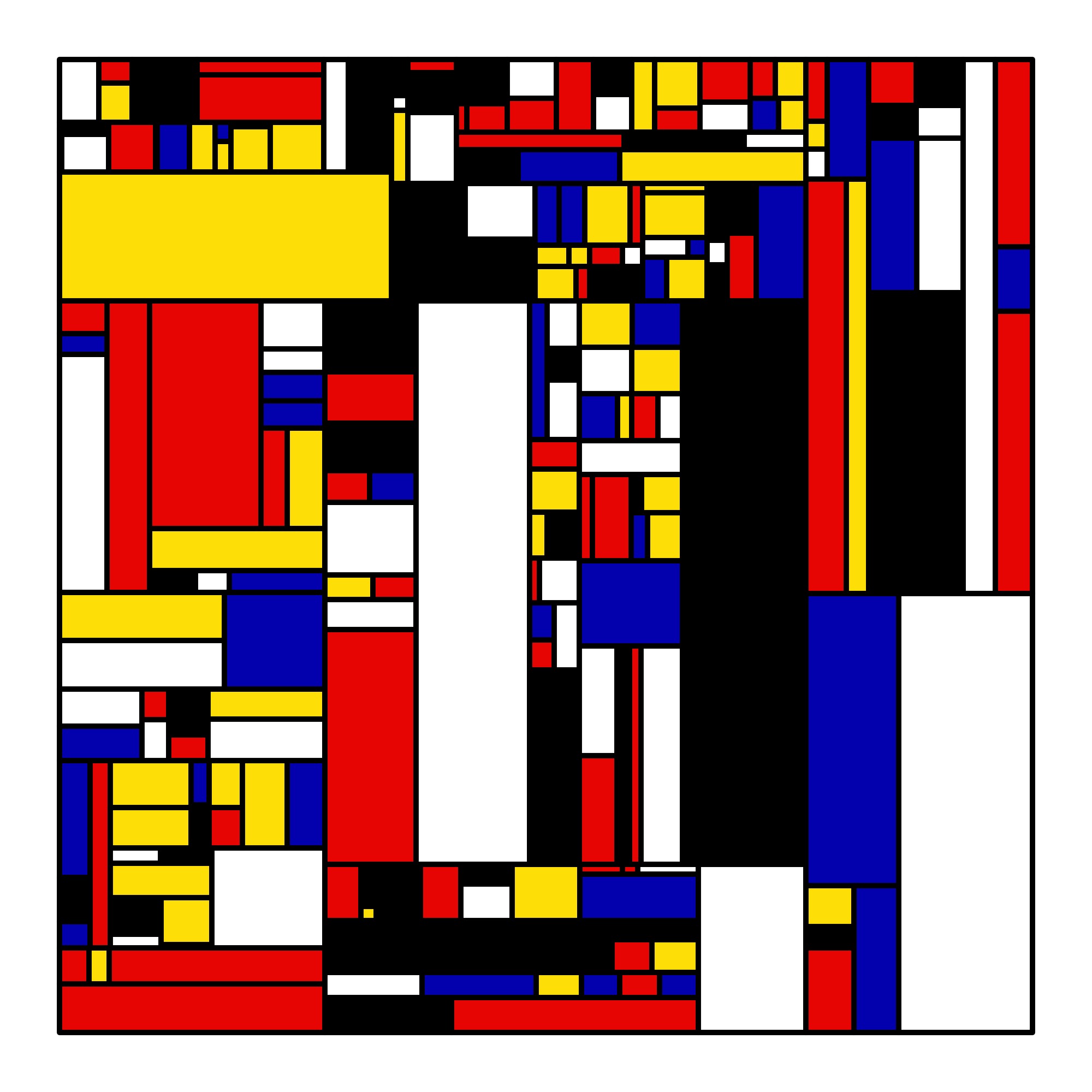

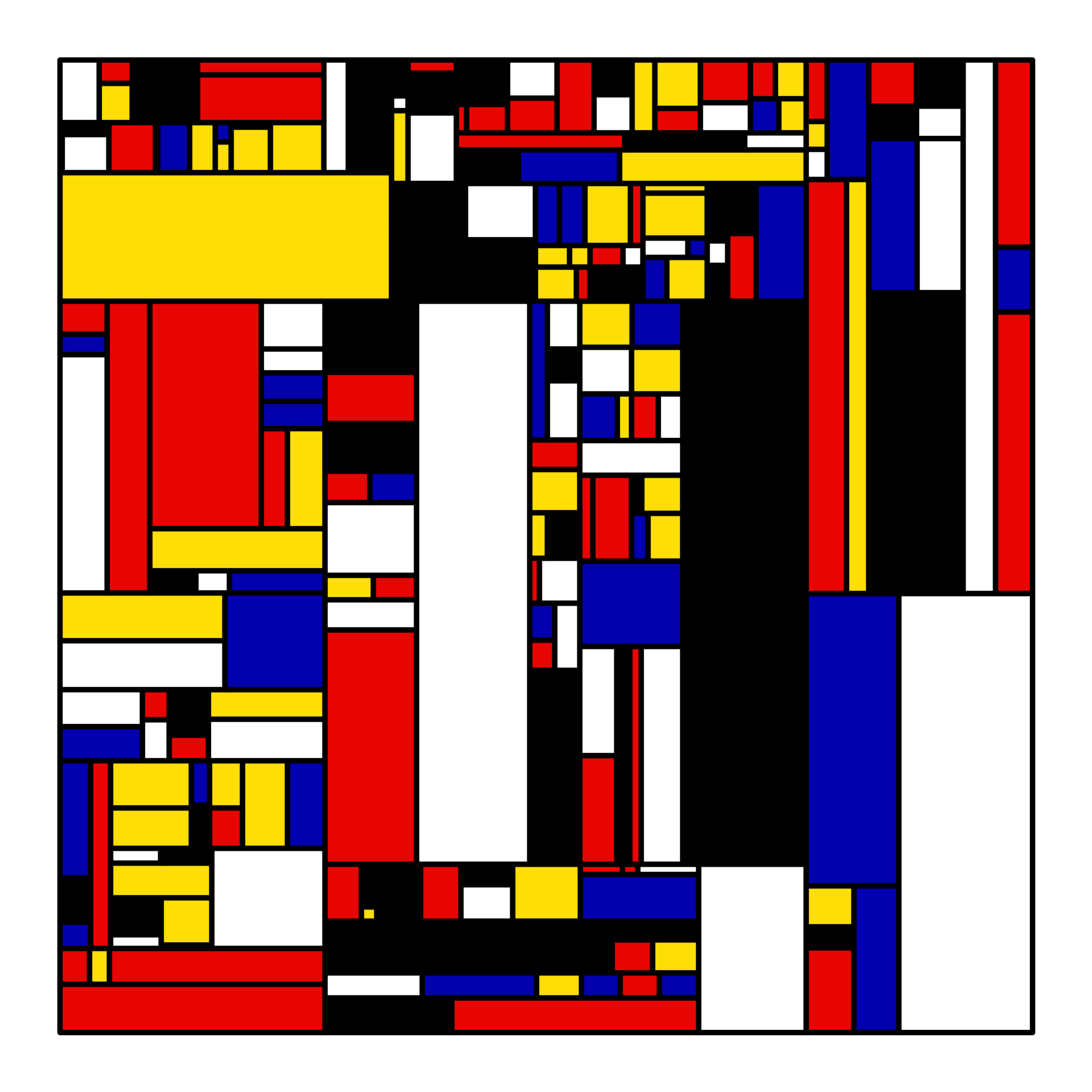

draw(seed=42)
