Aesthetic specifications

This document is a translation of the ggplot2 aesthetic specification.

import pandas as pd
from plotnine import *

Color and fill

Almost every geom has either color, fill, or both. Colors and fills can be specified in the following ways:

  • A name, e.g., "red". These can be any color name or value supported by matplotlib. See the matplotlib css colors documentation and the plot below for a list of colors.

  • An rgb specification, with a string of the form "#RRGGBB" where each of the pairs RR, GG, BB consists of two hexadecimal digits giving a value in the range 00 to FF

    You can optionally make the color transparent by using the form "#RRGGBBAA".

  • A missing value (e.g. None, np.nan, pd.NA), for a completely transparent colour.

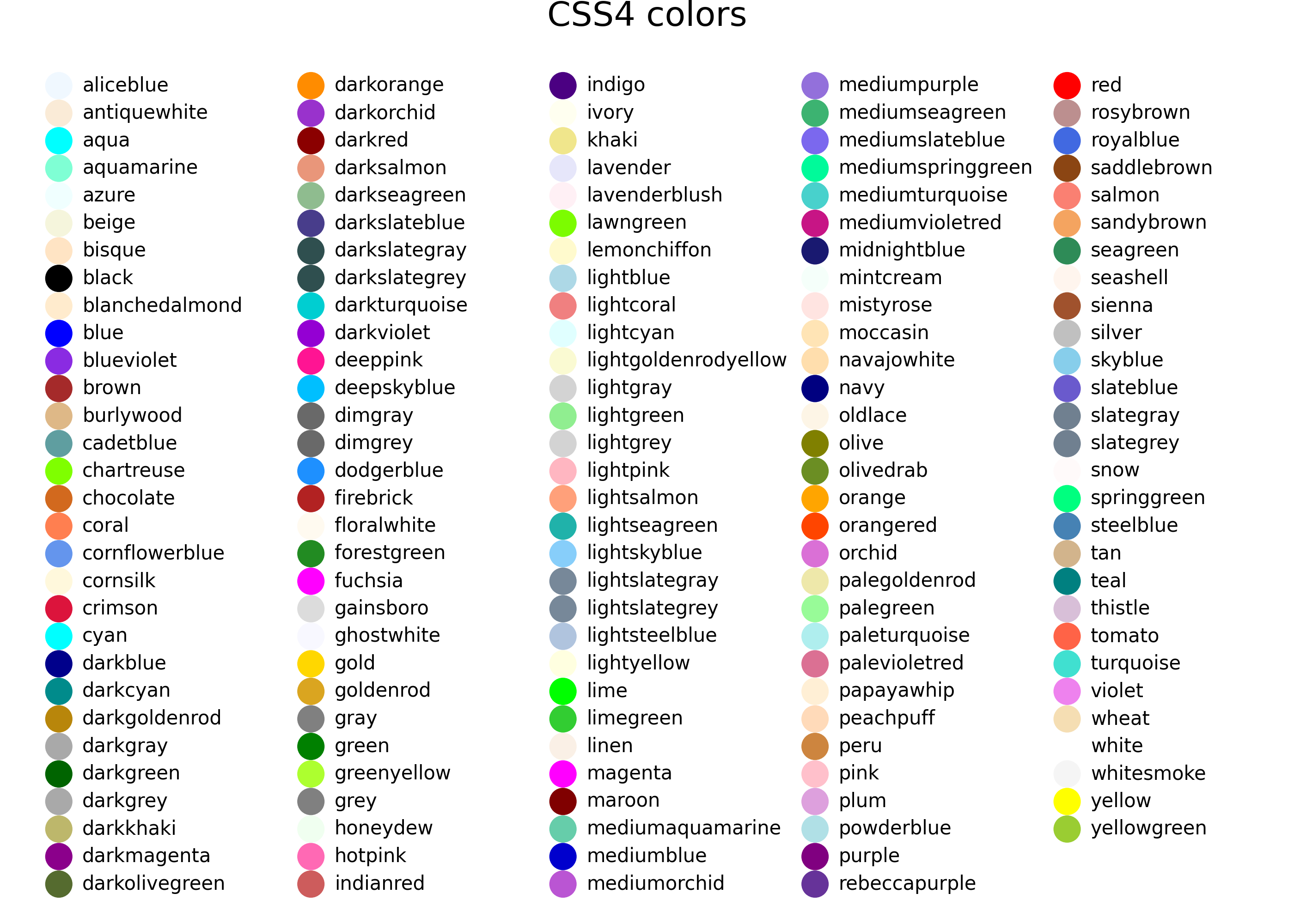

Here’s an example of listing CSS color names matplotlib supports:

from matplotlib import colors as mcolors

n_colors = len(mcolors.CSS4_COLORS)
colors = pd.DataFrame(
    {
        "name": [name for name in mcolors.CSS4_COLORS.keys()],
        "x": [(x // 30) * 1.5 for x in range(n_colors)],
        "y": [-(x % 30) for x in range(n_colors)],
    }
)

(
    ggplot(colors, aes("x", "y"))
    + geom_point(aes(color="name"), size=5)
    + geom_text(aes(label="name"), nudge_x=0.14, size=7.5, ha="left")
    + scale_color_identity(guide=None)
    + expand_limits(x=7)
    + theme_void()
    + labs(title="CSS4 colors")
)

Lines

As well as colour, the appearance of a line is affected by linewidth, linetype, linejoin and lineend.

Line type

Line types can be specified with:

  • A name: solid, dashed, dotted, dashdot, as shown below:

    lty = [
    "solid",
    "dashed",
    "dotted",
    "dashdot",
    ]
linetypes = pd.DataFrame({
  "y": list(range(len(lty))),
  "lty": lty
})

(ggplot(linetypes, aes(0, "y")) +
  geom_segment(aes(xend = 5, yend = "y", linetype = "lty")) +
  scale_linetype_identity(guide=None) +
  geom_text(aes(label = "lty"), nudge_y = 0.2, ha="left") +
  scale_x_continuous(name=None, breaks = None) +
  scale_y_reverse(name=None, breaks = None)

)

    A series of 6 horizontal lines with different line types. From top-to-bottom they are titled 'solid', 'dashed', 'dotted', 'dotdash', 'longdash', 'twodash'.

  • The lengths of on/off stretches of line. This is done with a tuple of the form (offset, (on, off, ...)).

    lty = [
    (0, (1, 1)),
    (0, (1, 8)),
    (0, (1, 15)),
    (0, (8, 1)),
    (0, (8, 8)),
    (0, (8, 15)),
    (0, (15, 1)),
    (0, (15, 8)),
    (0, (15, 15)),
    (0, (2, 2, 6, 2)),
]
linetypes = pd.DataFrame({"y": list(range(len(lty))), "lty": lty})

(
    ggplot(linetypes, aes(0, "y"))
    + geom_segment(aes(xend=5, yend="y", linetype="lty"))
    + scale_linetype_identity(guide=None)
    +
    geom_text(aes(label="lty"), nudge_y=0.2, ha="left")
    + scale_x_continuous(name=None, breaks=None)
    + scale_y_reverse(name=None, breaks=None)
)

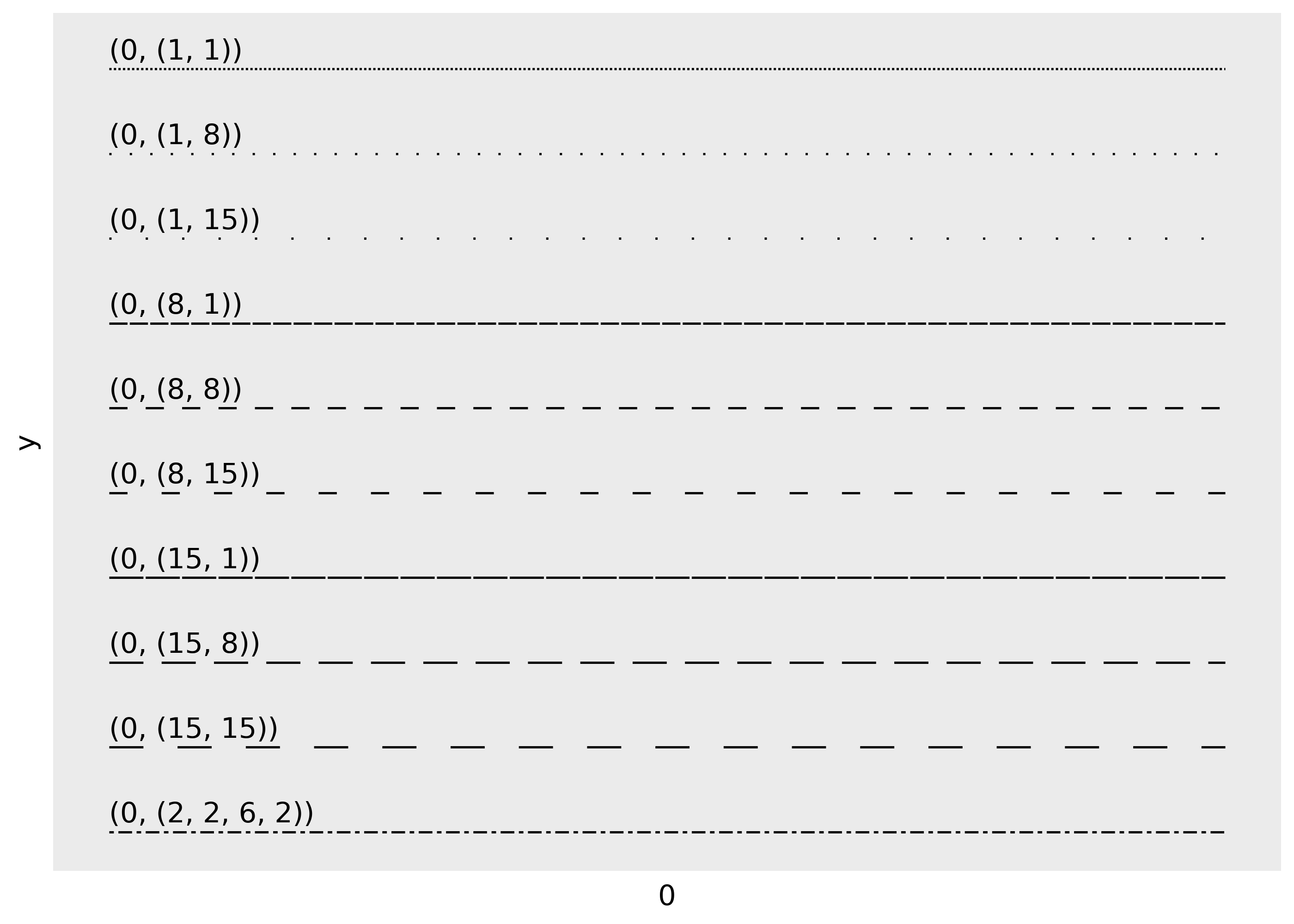

    A series of 9 horizontal lines with different line types. Each line is titled by two hexadecimal digits that determined the lengths of dashes and gaps."

The three standard dash-dot line types described above correspond to:

  • dashed: (0, (4, 4))
  • dotted: (0, (1, 3)
  • dashdot: (0, (1, 3, 4, 3))

Linewidth

Due to a historical error, the unit of linewidth is roughly 0.75 mm. Making it exactly 1 mm would change a very large number of existing plots, so we’re stuck with this mistake.

Line end/join parameters

  • The appearance of the line end is controlled by the lineend paramter, and can be one of “round”, “butt” (the default), or “square”.

    df = pd.DataFrame({"x": [1,2,3], "y": [4, 1, 9]})
base = ggplot(df, aes("x", "y")) + xlim(0.5, 3.5) + ylim(0, 10)
(
  base +
  geom_path(size = 10) +
  geom_path(size = 1, colour = "red")
)

(
  base +
  geom_path(size = 10, lineend = "round") +
  geom_path(size = 1, colour = "red")
)

(
  base +
  geom_path(size = 10, lineend = "square") +
  geom_path(size = 1, colour = "red")
)

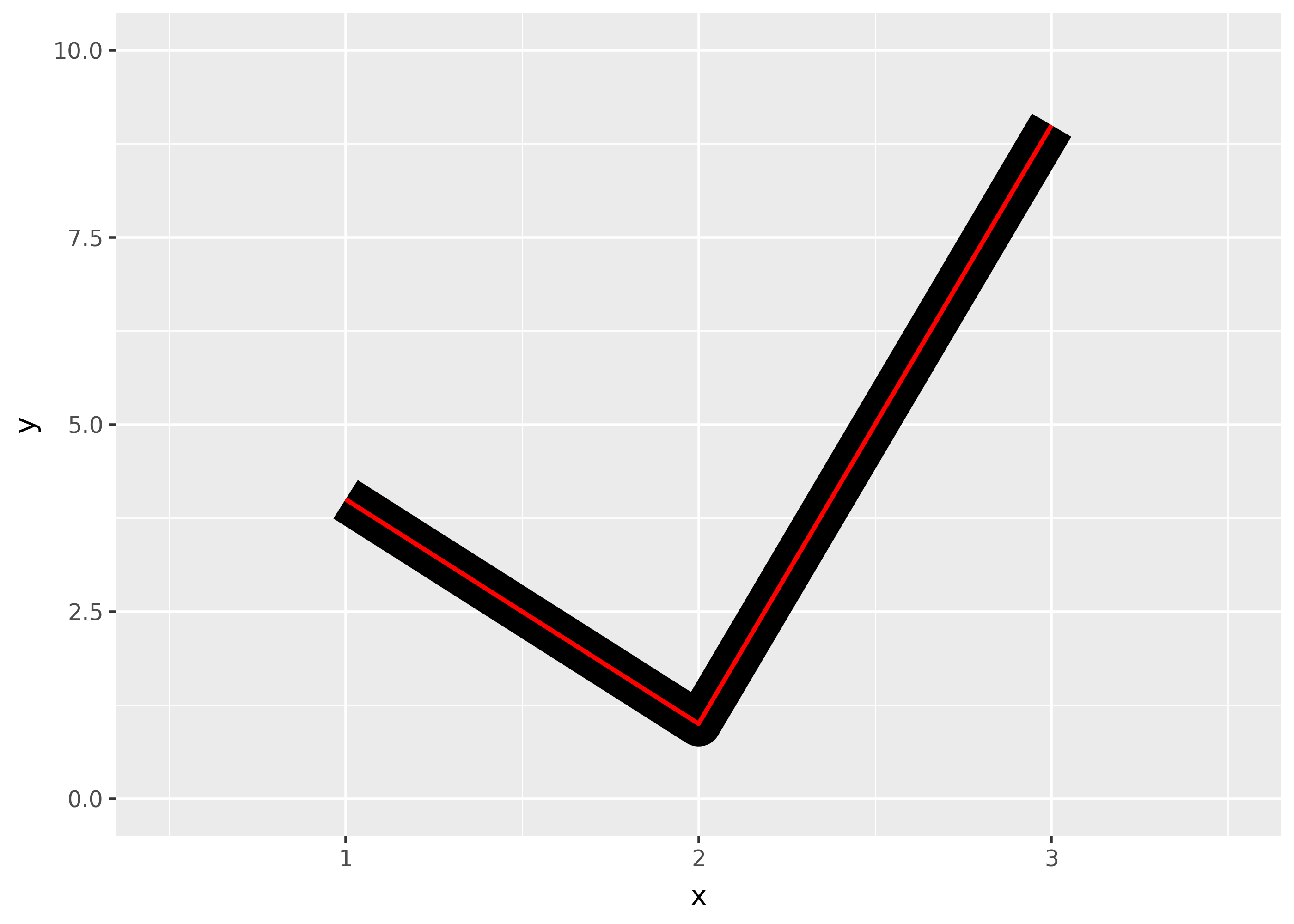

    A plot showing a line with an angle. A thinner red line is placed over a thicker black line. The black line ends where the red line ends.

    A plot showing a line with an angle. A thinner red line is placed over a thicker black line. The black line ends past where the red line ends, and ends in a semicircle.

    A plot showing a line with an angle. A thinner red line is placed over a thicker black line. The black line ends past where the red line ends, and ends in a square shape.

  • The appearance of line joins is controlled by linejoin and can be one of “round” (the default), “mitre”, or “bevel”.

    df = pd.DataFrame({"x": [1,2,3], "y": [9, 1, 9]})
base = ggplot(df, aes("x", "y")) + ylim(0, 10)
(
  base +
  geom_path(size = 10) +
  geom_path(size = 1, colour = "red")
)


(
  base +
  geom_path(size = 10, linejoin = "mitre") +
  geom_path(size = 1, colour = "red")
)

(
  base +
  geom_path(size = 10, linejoin = "bevel") +
  geom_path(size = 1, colour = "red")
)

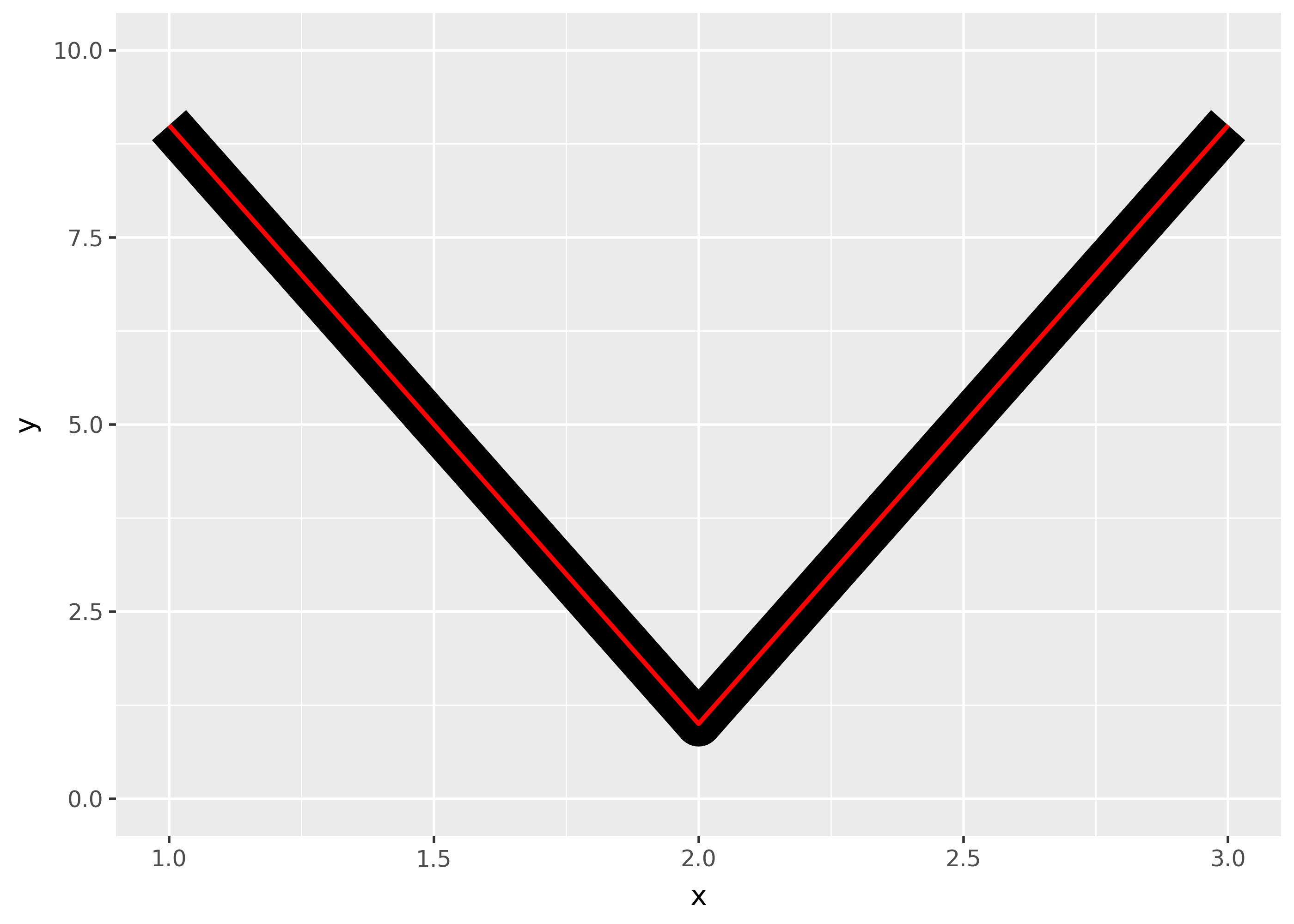

    A plot showing a thin red line on top of a thick black line shaped like the letter 'V'. The corner in the black V-shape is rounded.

    A plot showing a thin red line on top of a thick black line shaped like the letter 'V'. The corner in the black V-shape is sharp.

    A plot showing a thin red line on top of a thick black line shaped like the letter 'V'. A piece of the corner is cut off so that the two straight parts are connected by a horizontal part.

Mitre joins are automatically converted to bevel joins whenever the angle is too small (which would create a very long bevel). This is controlled by the linemitre parameter which specifies the maximum ratio between the line width and the length of the mitre.

Polygons

The border of the polygon is controlled by the colour, linetype, and linewidth aesthetics as described above. The inside is controlled by fill.

Point

Shape

Shapes take five types of values:

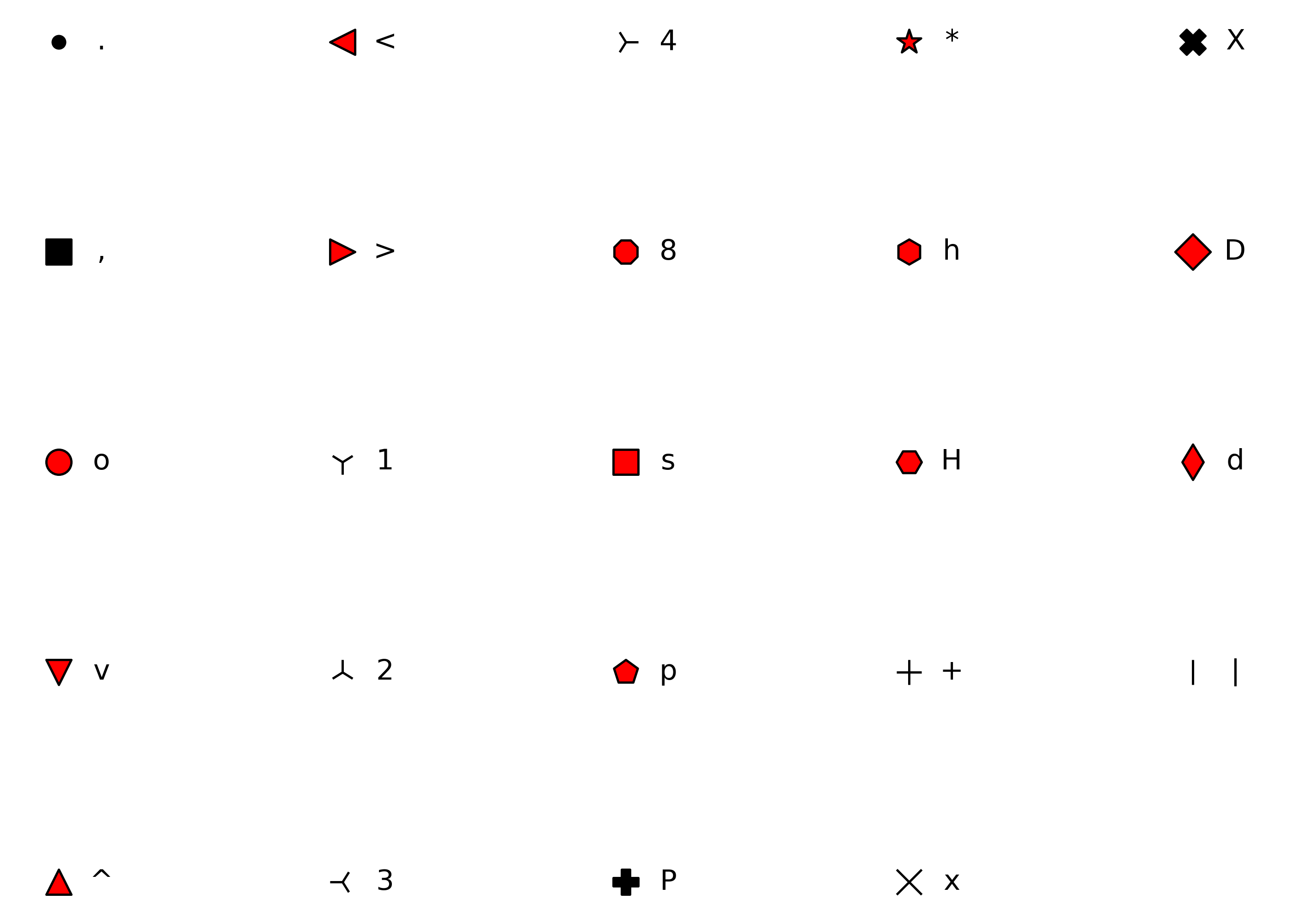

A 5-by-5 grid of point symbols annotated by the numbers that can be used to represent the symbols. From left to right, the first 15 symbols are lines or open shapes, the next 5 symbols are solid shapes and the last 5 symbols are filled shaped.

  • None to draw nothing.

Color and fill

While color applies to all shapes, fill only applies to shapes with red fill in the plot above. The size of the filled part is controlled by size, the size of the stroke is controlled by stroke. Each is measured in mm, and the total size of the point is the sum of the two. Note that the size is constant along the diagonal in the following figure.

sizes = (
  pd.DataFrame({"size": [0, 2, 4, 6]})
  .merge(
    pd.DataFrame({"stroke": [0, 2, 4, 6]}), how="cross"
  )
)

(
  ggplot(sizes, aes("size", "stroke", size = "size", stroke = "stroke")) +
  geom_abline(slope = -1, intercept = 6, colour = "white", size = 6) +
  geom_point(shape = "o", fill = "red") +
  scale_size_identity(guide=None)
)

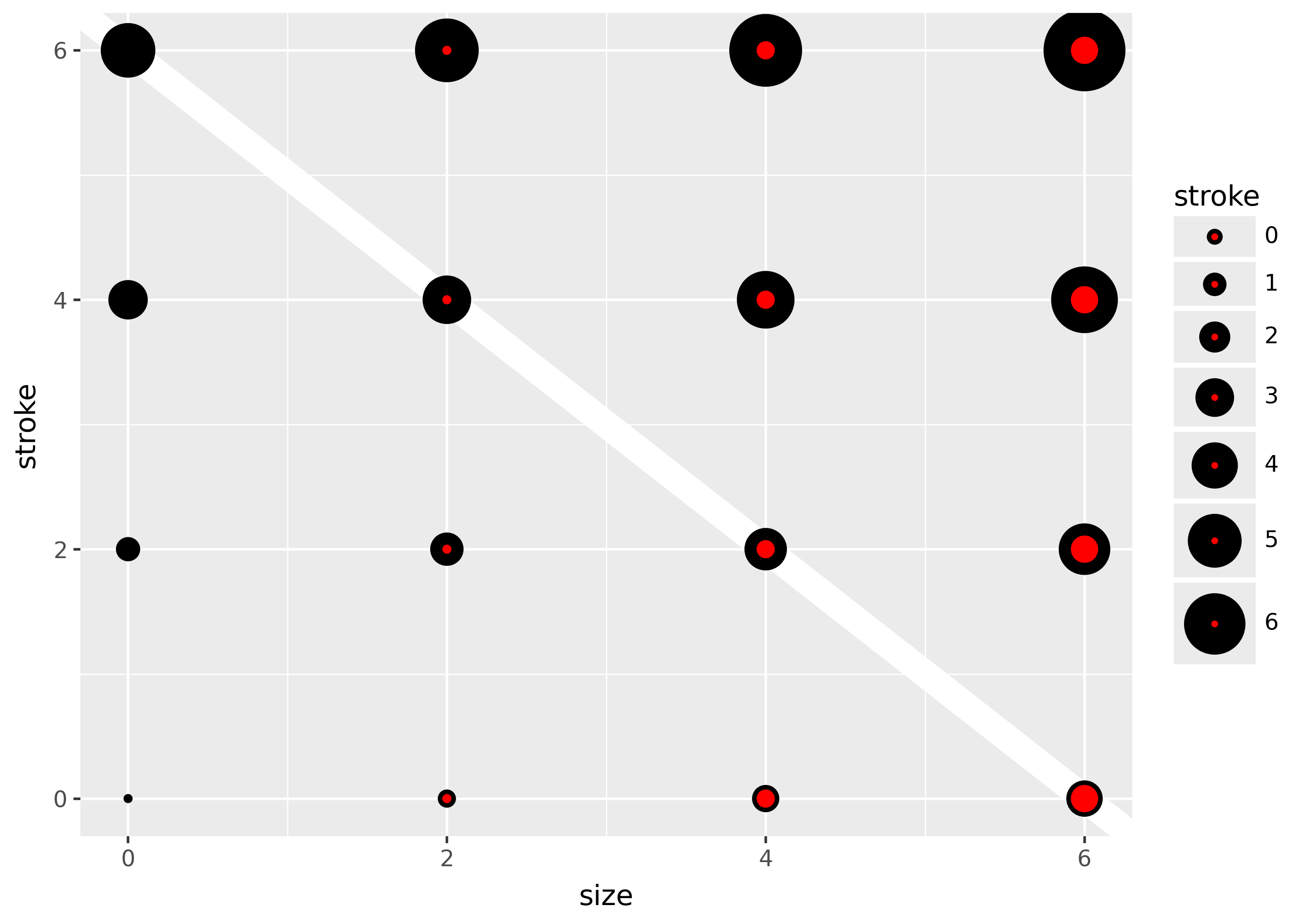

A plot showing a 4-by-4 grid of red points, the top 12 points with black outlines. The size of the points increases horizontally. The stroke of the outlines of the points increases vertically. A white diagonal line with a negative slope marks that the 'stroke' versus 'size' trade-off has similar total sizes.

Text

Font family

There are only three fonts that are guaranteed to work everywhere: “sans” (the default), “serif”, or “mono”:

df = pd.DataFrame(
    {"x": 1, "y": [3, 2, 1], "family": ["sans-serif", "serif", "monospace"]}
)

(ggplot(df, aes("x", "y")) + geom_text(aes(label="family", family="family"), size=20))

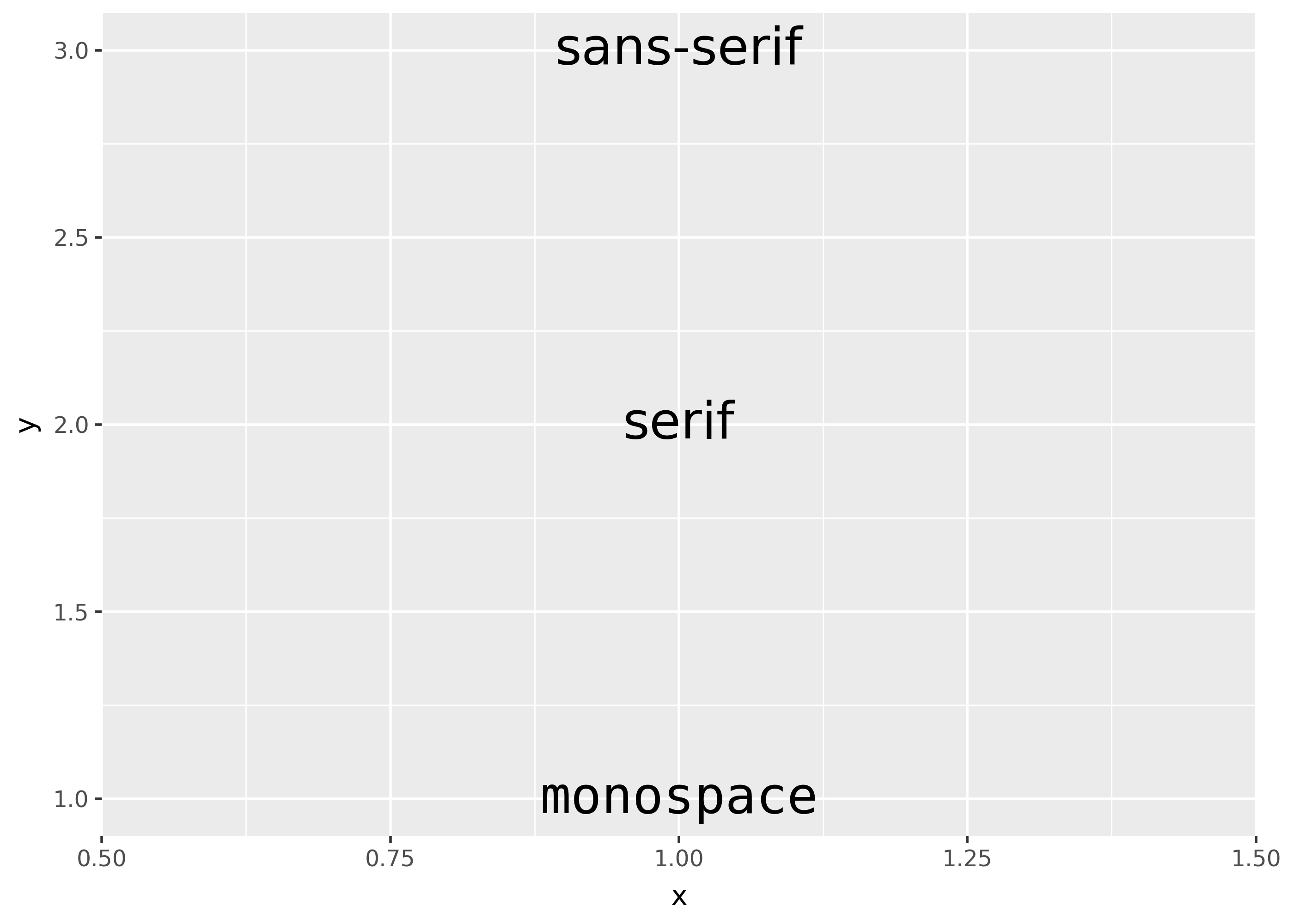

A plot showing three text labels arranged vertically. The top label is 'sans' and is displayed in a sans-serif font. The middle label is 'serif' and is displayed in a serif font. The bottom label is 'mono' and is displayed in a monospaced font.

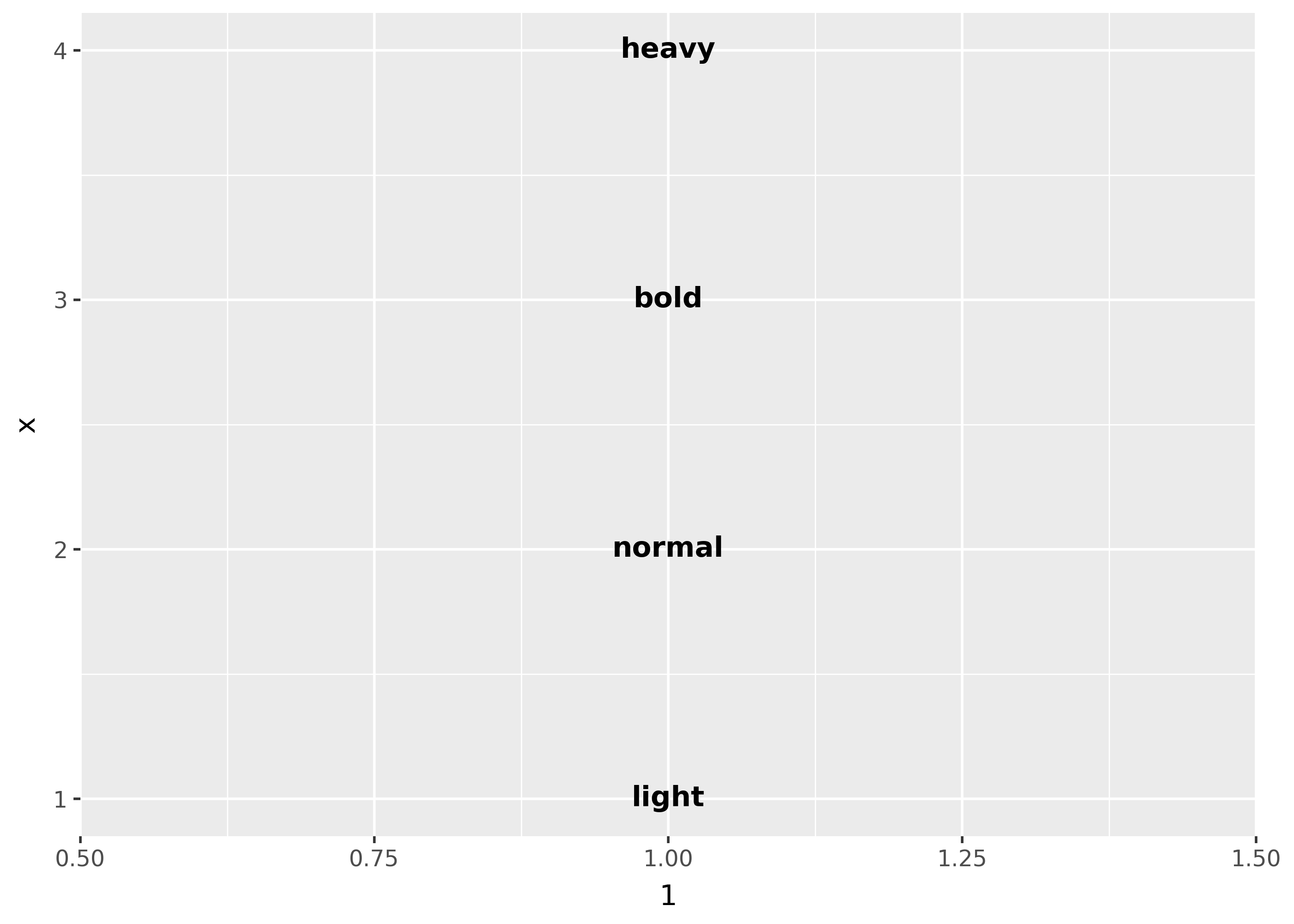

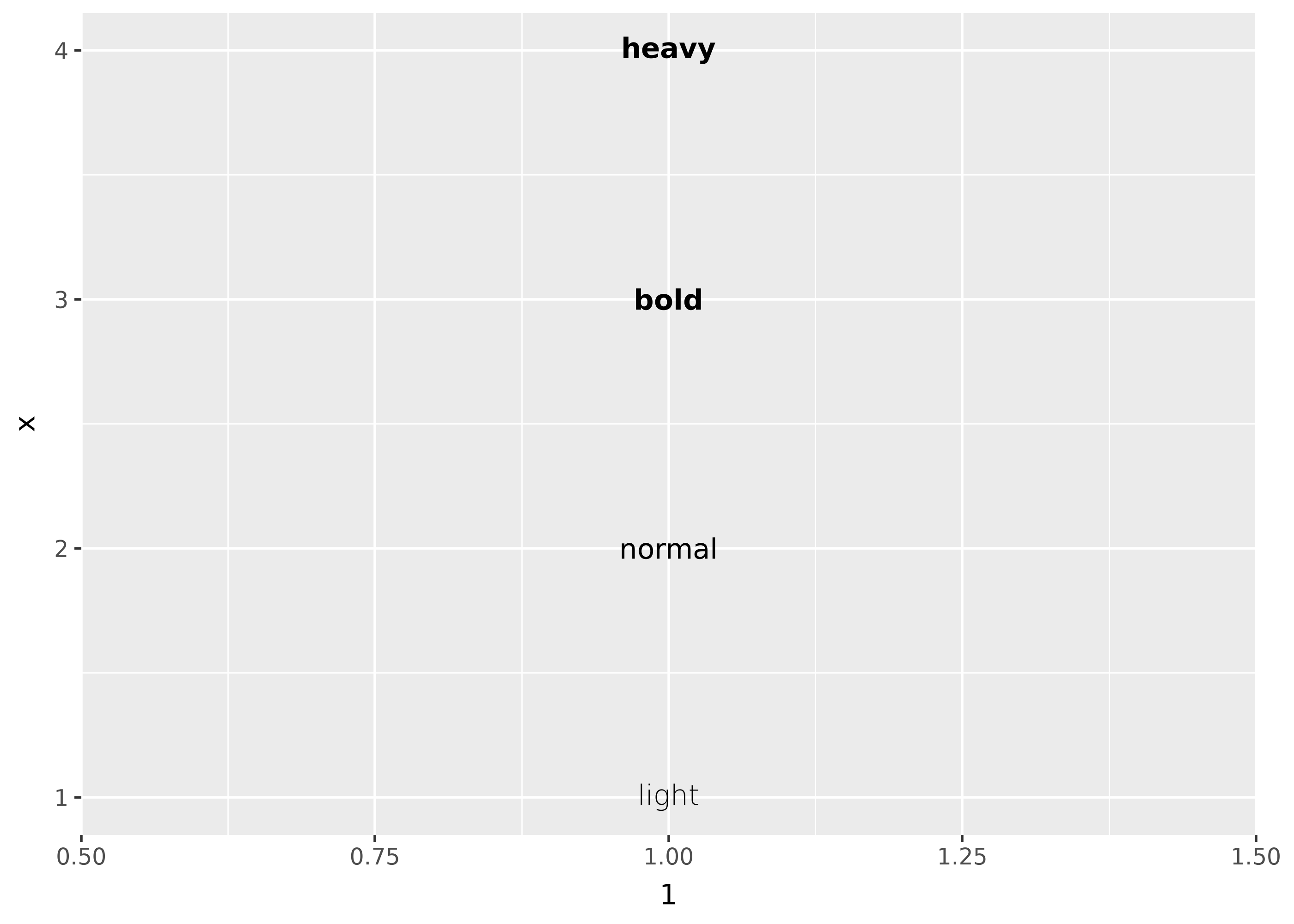

Font weight

Currently, font weight doesn’t seem to work in plotnine (see this issue). But once it does, code like this should work:

df = pd.DataFrame(
    {"x": [1, 2, 3, 4], "fontweight": ["light", "normal", "bold", "heavy"]}
)

(ggplot(df, aes(1, "x")) + geom_text(aes(label="fontweight"), fontweight="bold"))

A plot showing four text labels arranged vertically. The top label is 'bold.italic' and is displayed in bold and italic. The next three labels are 'italic', 'bold' and 'normal' and are displayed in their respective styles.

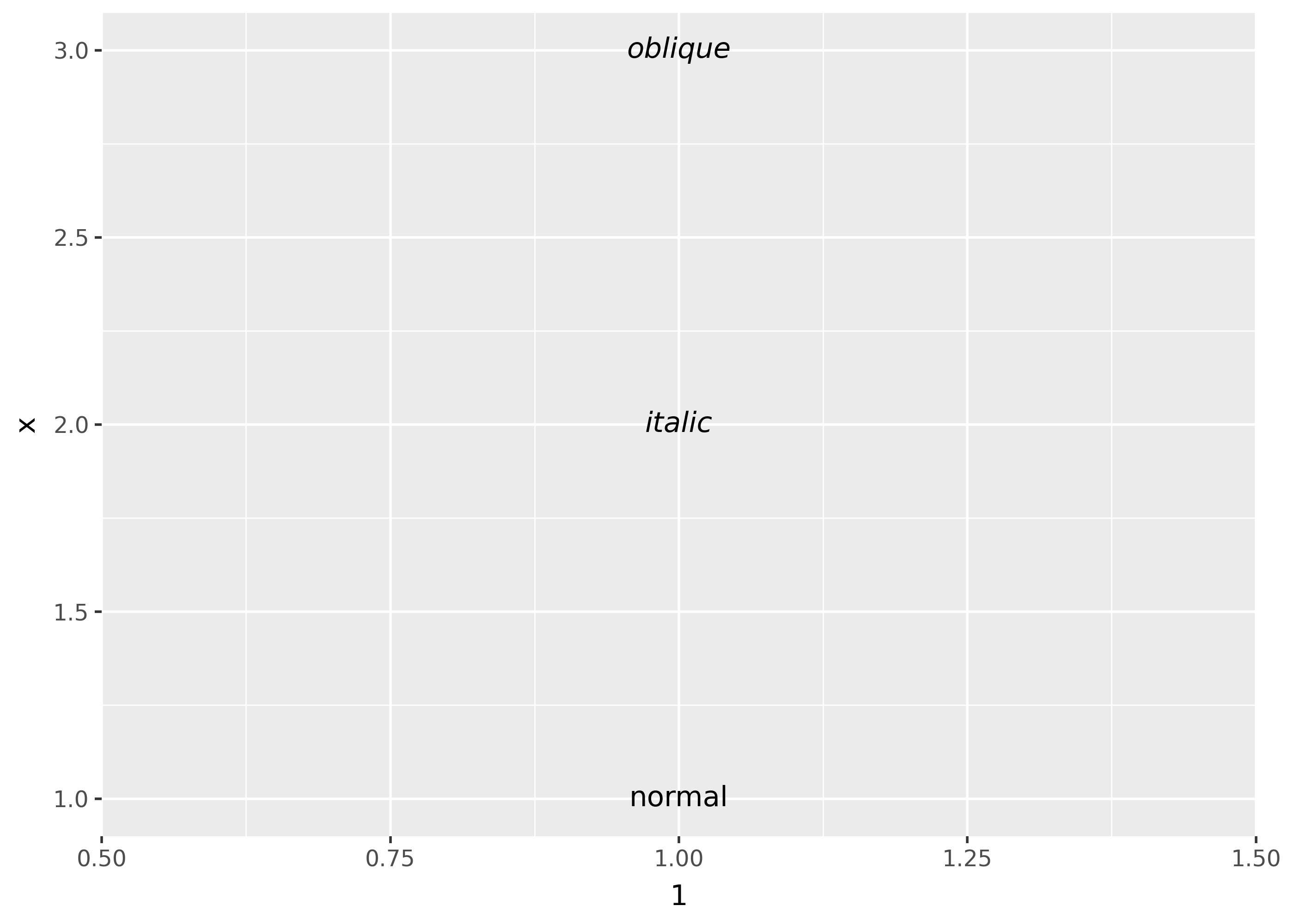

Font style

Currently font style doesn’t seem to work in plotnine (see this issue). But once it does, code like this should work:

df = pd.DataFrame({"x": [1, 2, 3], "fontstyle": ["normal", "italic", "oblique"]})

(ggplot(df, aes(1, "x")) + geom_text(aes(label="fontstyle", fontstyle="fontstyle")))

Font size

The size of text is measured in mm by default. This is unusual, but makes the size of text consistent with the size of lines and points. Typically you specify font size using points (or pt for short), where 1 pt = 0.35mm. In geom_text() and geom_label(), you can set size.unit = "pt" to use points instead of millimeters. In addition, ggplot2 provides a conversion factor as the variable .pt, so if you want to draw 12pt text, you can also set size = 12 / .pt.

Justification

Horizontal and vertical justification have the same parameterisation, either a string (“top”, “middle”, “bottom”, “left”, “center”, “right”) or a number between 0 and 1:

  • top = 1, middle = 0.5, bottom = 0
  • left = 0, center = 0.5, right = 1
just = pd.DataFrame({"hjust": ["center", "right", "left"], "x": [0, 1, 2]}).merge(pd.DataFrame({"vjust": ["center", "top", "bottom"], "y": [0, 1, 2]}), how="cross")

just["label"] = just["hjust"].astype(str).str.cat(just["vjust"].astype(str), sep=", ")

(
  ggplot(just, aes("x", "y")) +
  geom_point(colour = "grey", size = 5) +
  geom_text(aes(label = "label", hjust = "hjust", vjust = "vjust"))
  + expand_limits(x = [-.5, 2.5], y = [-.5, 2.5])
)

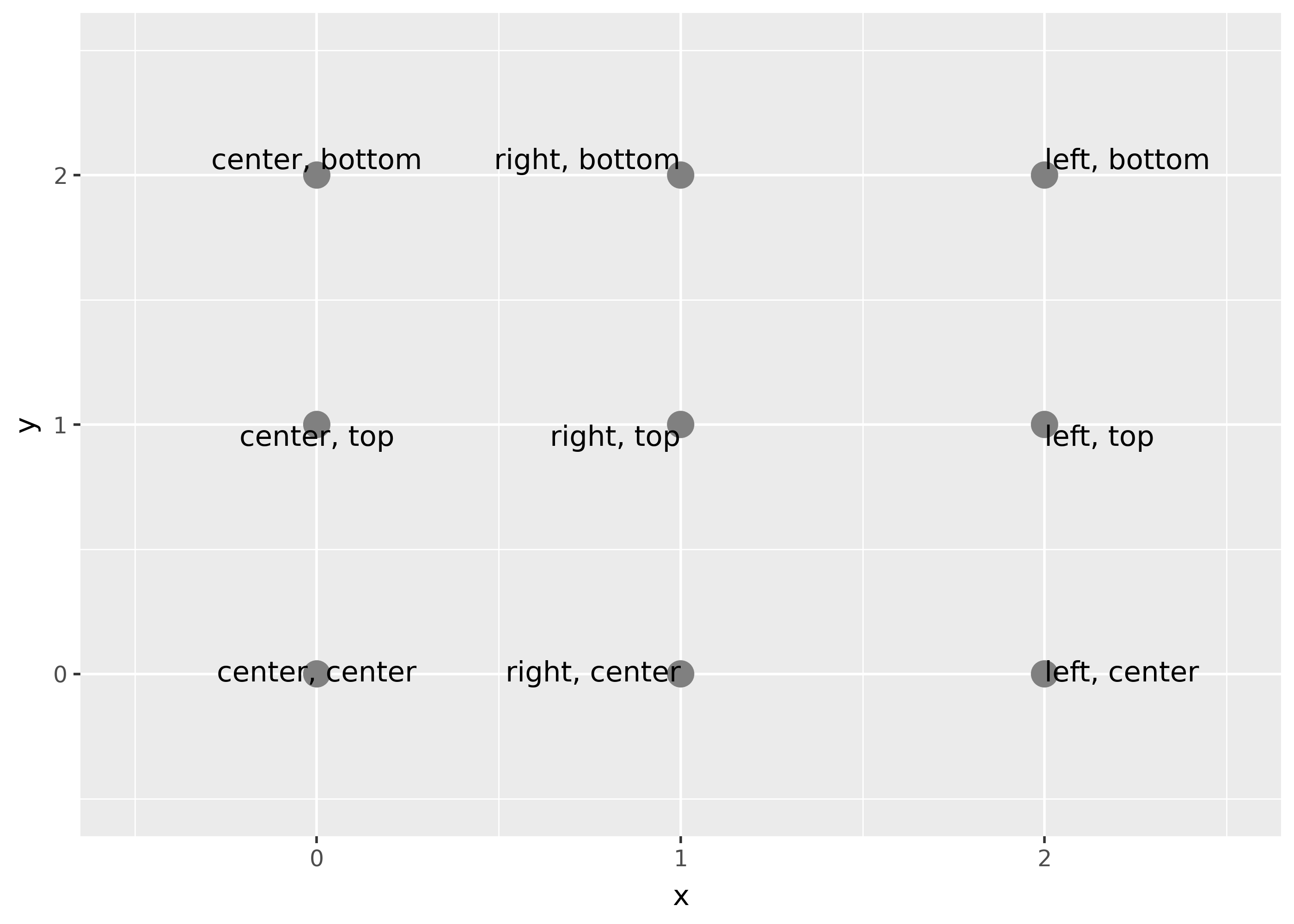

A 3-by-3 grid of text on top of points, with horizontal text justification increasing from 0 to 1 on the x-axis and vertical justification increasing from 0 to 1 on the y-axis. The points make it easier to see the relative placement of text.

Note that you can use numbers outside the range (0, 1), but it’s not recommended.
