Annotations

This page covers how to describe or emphasize data with annotations in plots. This includes labelling points, adding arrows, and highlighting areas of interest. It also describes how to tackle the common issue of overlapping text labels.

You will learn
  • How to quickly draw a single geom, without having to pass in data.
  • How to add more complex styling to geom_text().
  • How to avoid overlapping text labels.
  • How to emphasize areas of interest with boxes, arrows, and shading.
  • Use annotate() to quickly add a single geom mark to a plot.
  • Use geom_text(path_effects=...) to add more complex styling to text labels.
  • Use geom_text(adjust_text=...) to automatically adjust the position of text labels so they don’t overlap.
  • More advanced styling of text labels (e.g. in the plot title), requires manually handling matplotlib objects.
  • Use geom_rect() to add background shading to plots.
  • Use geom_segment() to add arrows to plots.

Setup

from plotnine import *
from plotnine.data import penguins

annotate()

Use annotate() to write some text on a plot.

r_coef = penguins["flipper_length_mm"].corr(penguins["body_mass_g"])
p = (
    ggplot(penguins, aes("flipper_length_mm", "body_mass_g"))
    + geom_point()
    + geom_smooth(method="lm")
    + annotate(
        "text",
        x=180,
        y=5750,
        label=f"r = {r_coef:.2f}",
        color="blue",
        size=20,
    )
)

p
/home/runner/work/plotnine.org/plotnine.org/.venv/lib/python3.12/site-packages/plotnine/layer.py:364: PlotnineWarning: geom_point : Removed 2 rows containing missing values.

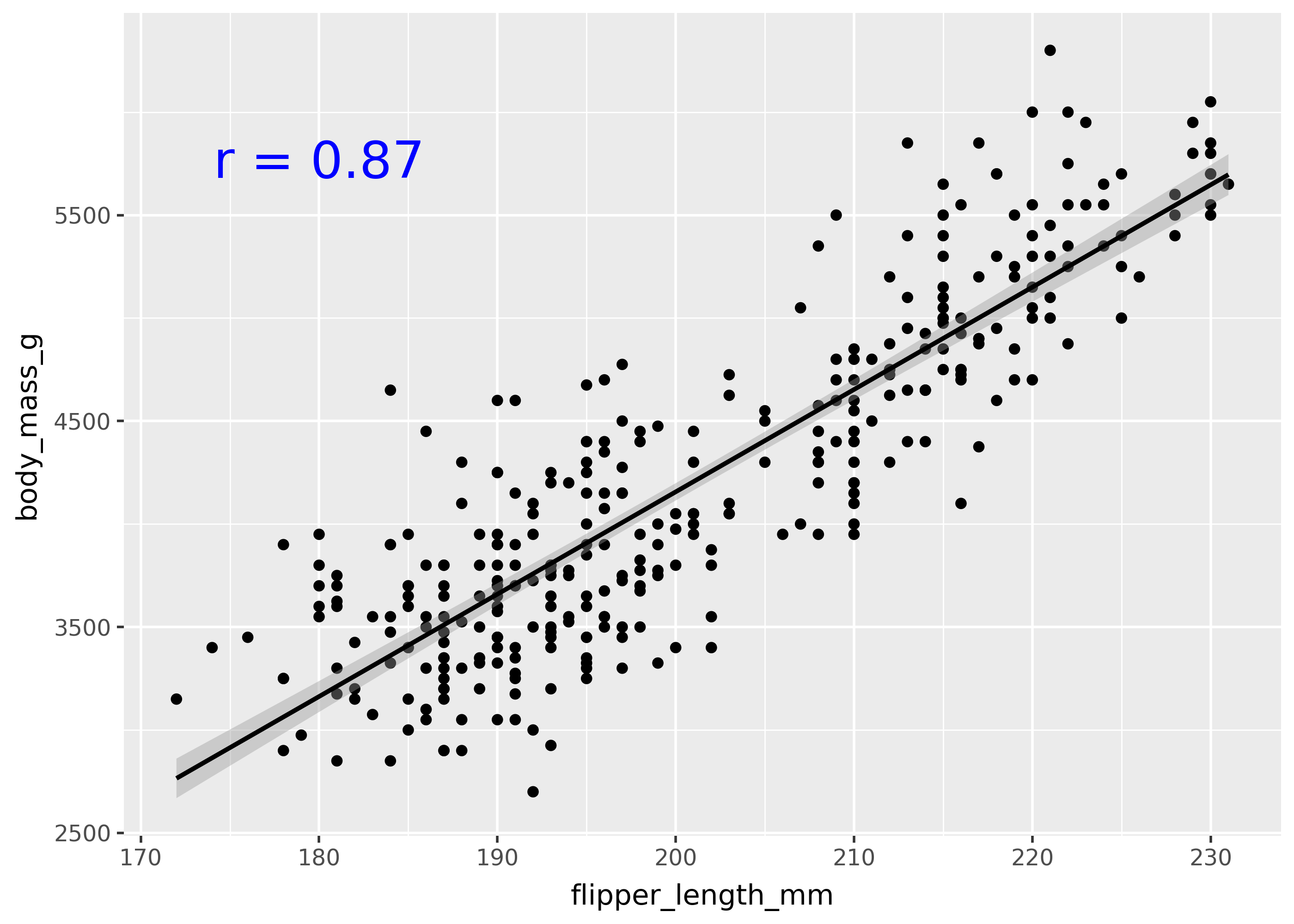

Notice that the correlation coefficient is shown on the top-left of the plot. The first argument to annotate, specifies the geom to use (in this case, the "text" means to use geom_text()).

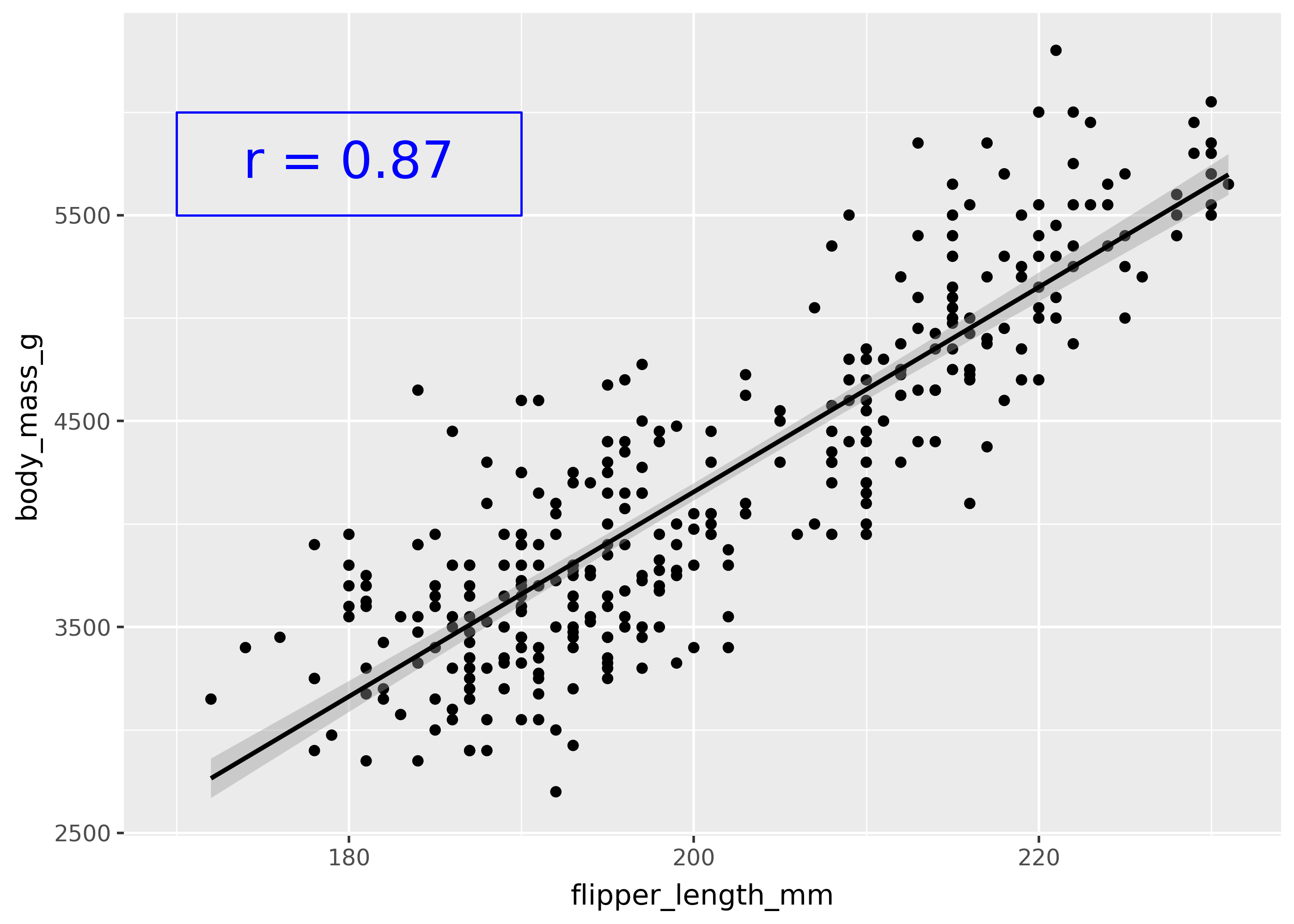

In order to use annotate with another geom, pass the name of the geom as the first argument. For example, the code below draws a rectangle around the text.

p + annotate("rect", xmin=170, xmax=190, ymin=5500, ymax=6000, color="blue", fill=None)
/home/runner/work/plotnine.org/plotnine.org/.venv/lib/python3.12/site-packages/plotnine/layer.py:364: PlotnineWarning: geom_point : Removed 2 rows containing missing values.

Note that annotate() takes the same arguments as the corresponding geom_*() class (in this case, geom_rect()).

geom_text(path_effects=...)

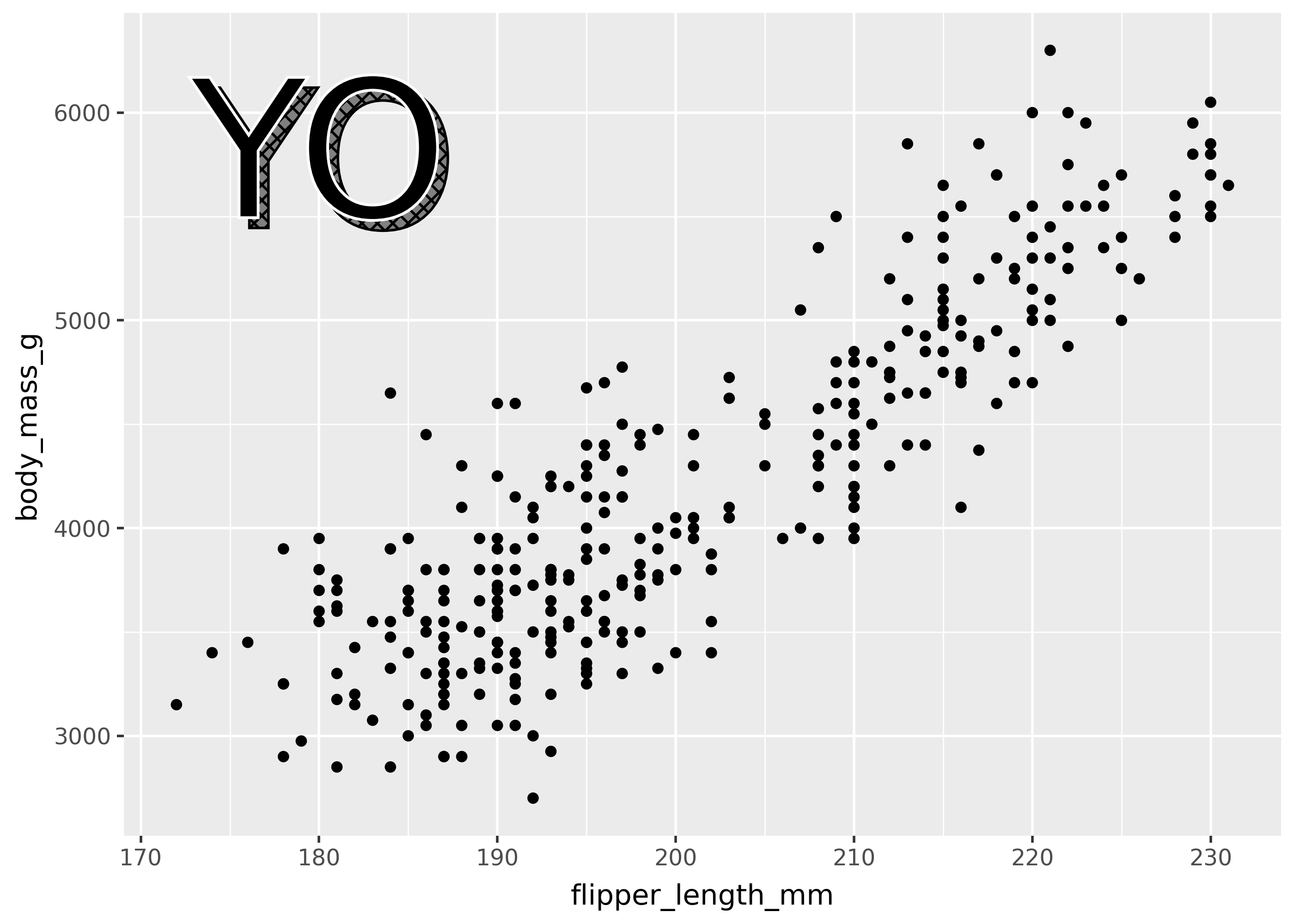

Use the geom_text(path_effects=...) argument to add more complex styling to your text. This argument takes a list of objects created by the matplotlib.patheffects submodule.

import matplotlib.patheffects as pe

effect = [
    pe.PathPatchEffect(offset=(4, -4), hatch="xxxx", facecolor="gray"),
    pe.PathPatchEffect(edgecolor="white", linewidth=1.1, facecolor="black"),
]

(
    ggplot(penguins, aes(x="flipper_length_mm", y="body_mass_g"))
    + geom_point()
    + annotate("text", x=180, y=5750, label="YO", path_effects=effect, size=75)
)
/home/runner/work/plotnine.org/plotnine.org/.venv/lib/python3.12/site-packages/plotnine/layer.py:364: PlotnineWarning: geom_point : Removed 2 rows containing missing values.

geom_text(adjust_text=...)

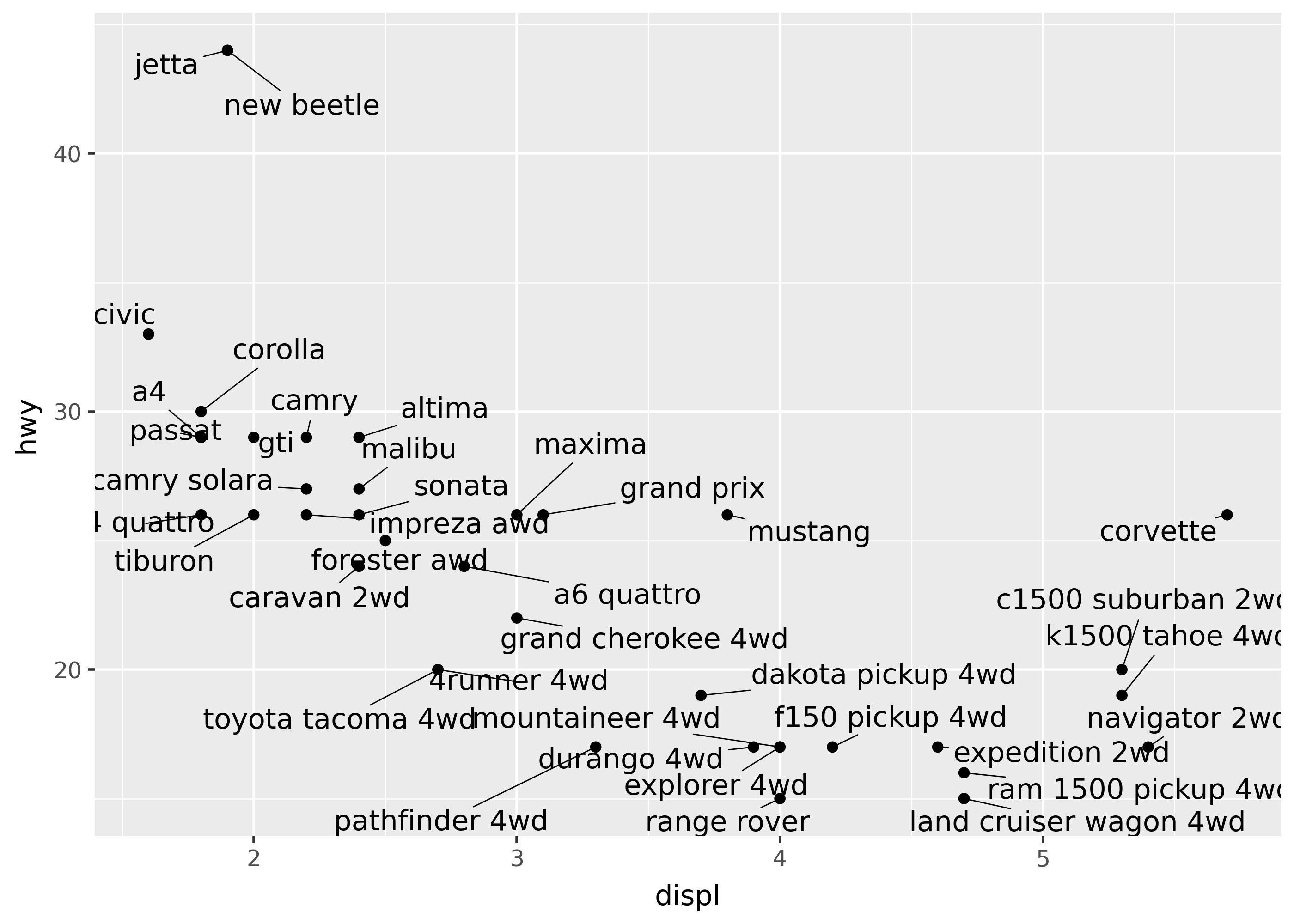

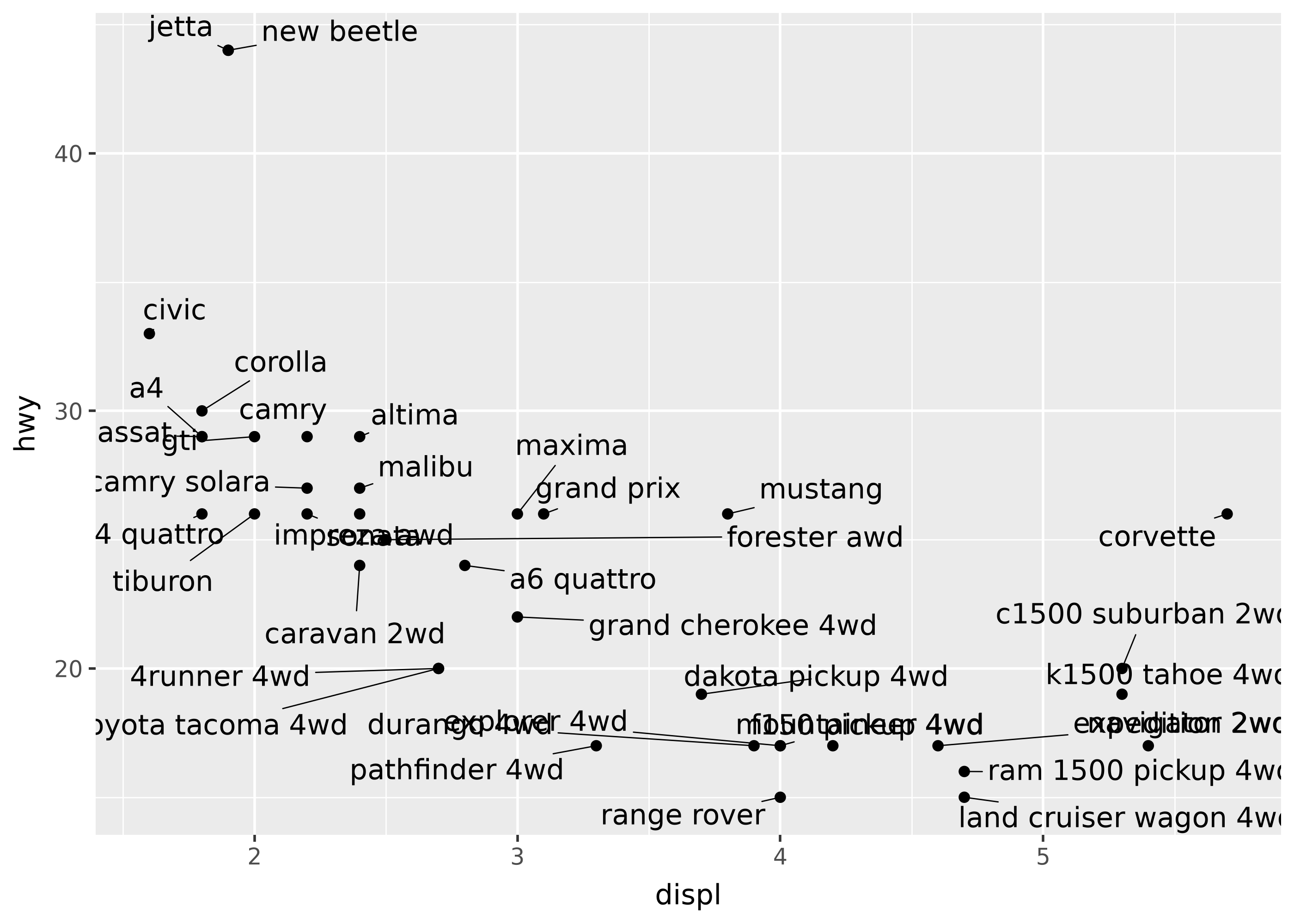

Use the geom_text(adjust_text=...) argument to adjust the position of text labels so they don’t overlap. This argument takes a dictionary that gets passed to the adjustText package’s adjust_text() function.

from plotnine.data import mpg

(
    ggplot(mpg.drop_duplicates("model"), aes("displ", "hwy", label="model"))
    + geom_point()
    + geom_text(adjust_text={"arrowprops": {"arrowstyle": "-"}})
)
0 [-0.95594669 -0.75106639]
37 [-0.94853338 -0.8508504 ]
35 [ 0.05408476 -0.99934485]
36 [-0.09384805 -0.26375893]

Styling text

Currently, styling text requires manually handling matplotlib objects (which plotnine builds on top of). See the blogpost “Annotated area charts with plotnine” for a walkthrough of creating custom text.

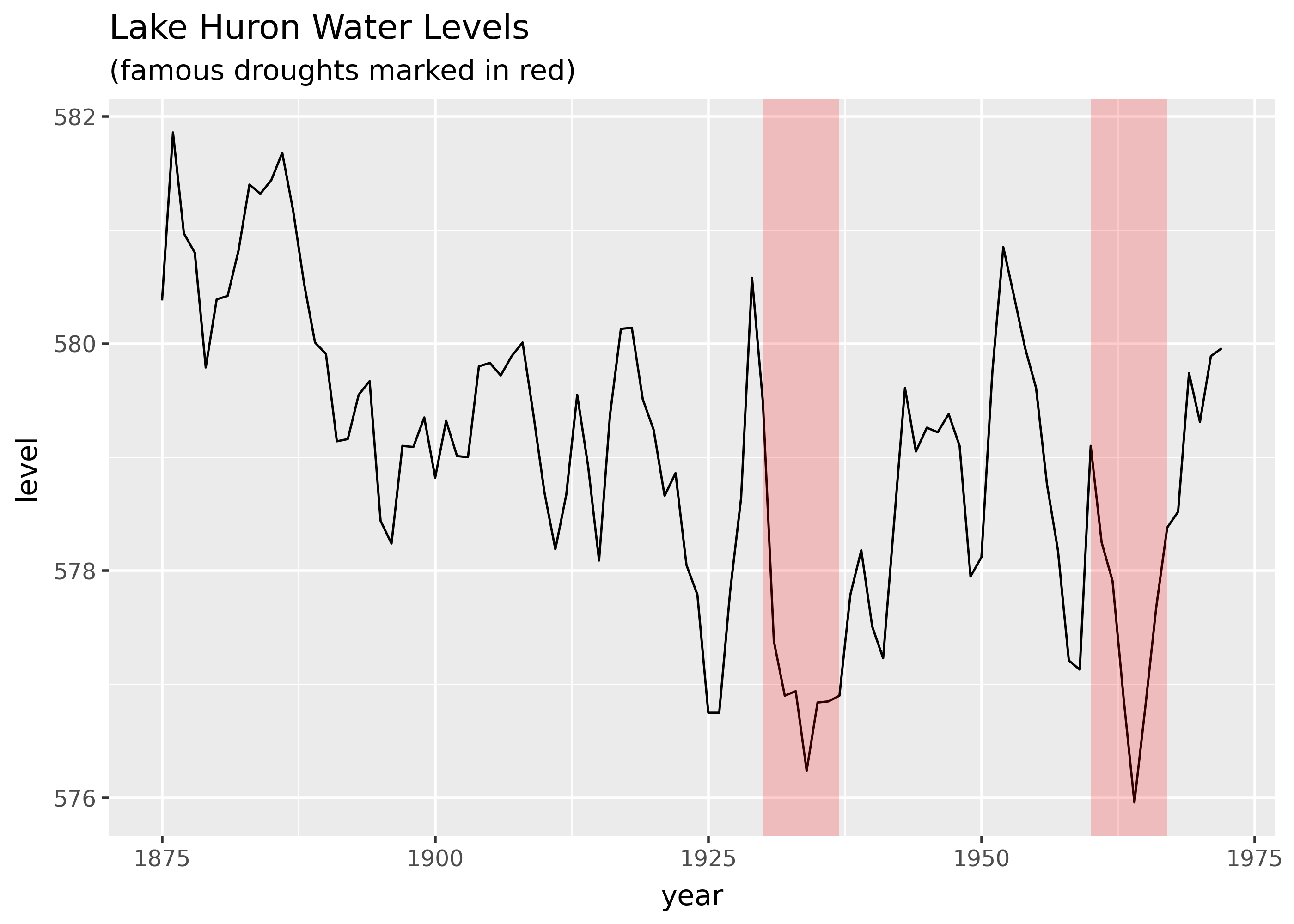

Emphasis with shading

import math
import pandas as pd
from plotnine.data import huron

droughts = pd.DataFrame(
    {
        "start": [1930, 1960],
        "stop": [1937, 1967],
    }
)

(
    ggplot(huron)
    + geom_line(aes("year", "level"))
    + geom_rect(
        aes(xmin="start", xmax="stop"),
        ymin=-math.inf,
        ymax=math.inf,
        alpha=0.2,
        fill="red",
        data=droughts,
    )
    + labs(
        title="Lake Huron Water Levels",
        subtitle="(famous droughts marked in red)",
    )
)

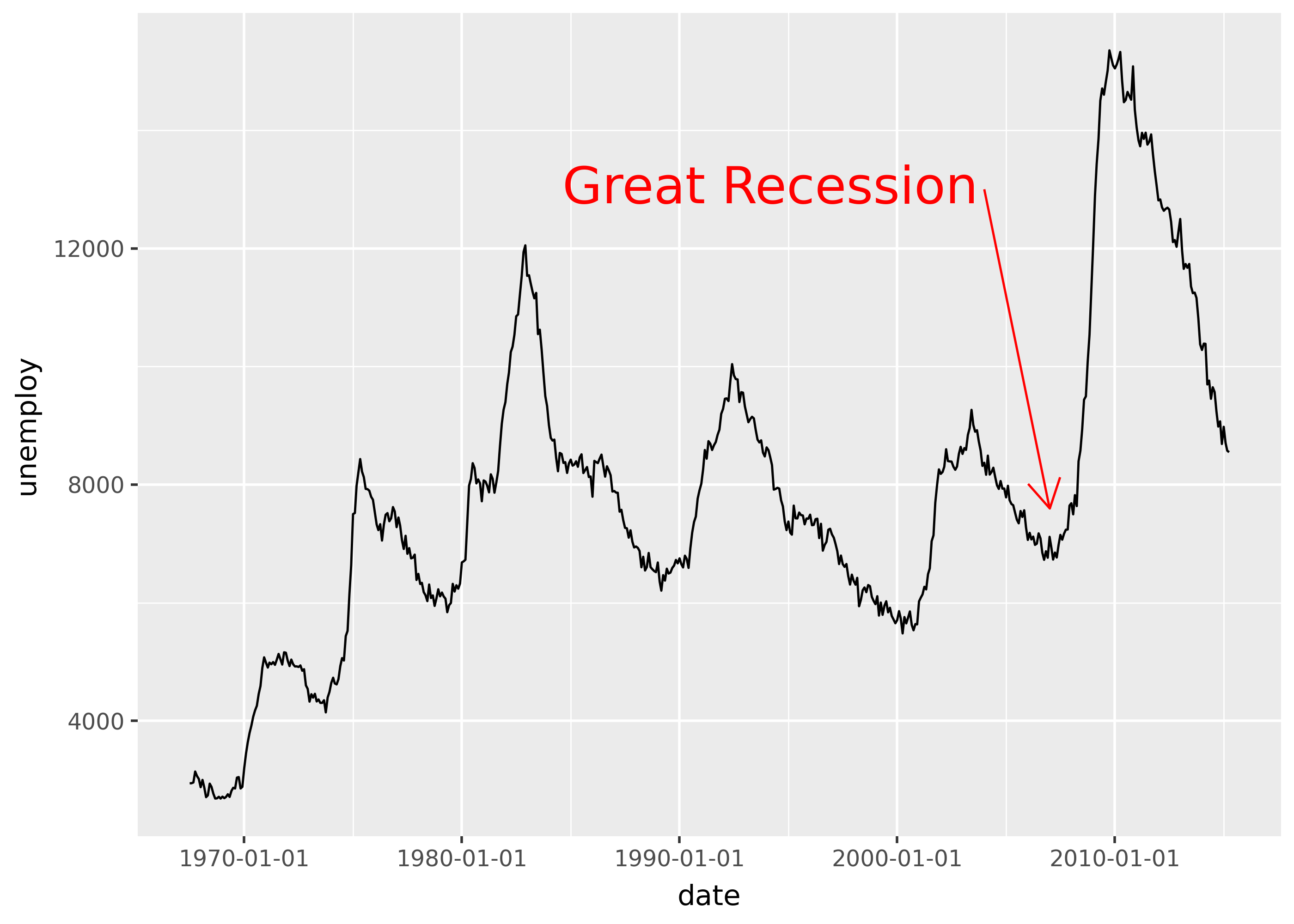

Emphasis with arrows

from plotnine.data import economics

(
    ggplot(economics, aes("date", "unemploy"))
    + geom_line()
    + scale_x_date(breaks="10 years")
    + annotate(
        "segment",
        x="2004-01-01",
        y=13000,
        xend="2007-01-01",
        yend=7600,
        color="red",
        arrow=arrow(length=0.2),
    )
    + annotate(
        "text",
        x="2004-01-01",
        y=13000,
        label="Great Recession",
        color="red",
        size=20,
        ha="right",
        nudge_x=-100,
    )
)
